• Durbal BEMN25-20-502 Maintenance Required Left Hand Metric Steel Male Rod End M24x2 Thread
  • Durbal
1 2

SKU: BEMN25-20-502-DURB

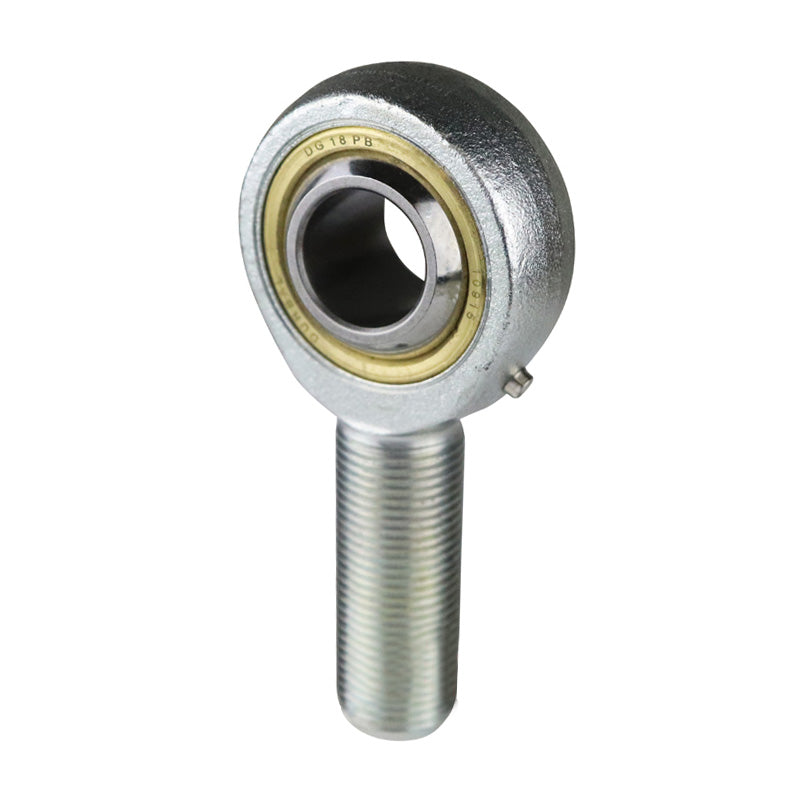

Durbal BEMN25-20-502 Maintenance Required Left Hand Metric Steel Male Rod End M24x2 Thread

Durbal BEMN25-20-502 Maintenance Required Left Hand Metric Steel Male Rod End M24x2 Thread
$116.53 ex VAT
$116.53 ex VAT
Sale Sold out

In stock

Price Break
10+ $78.05
19+ $73.67
29+ $72.79
39+ $71.91
49+ $71.04
74+ $70.16
99+ $65.78
199+ $64.90
249+ $64.02
499+ $63.14
999+ $61.39

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Durbal - High Quality
Thread Size:
M24x2
Thread M / F:
Male
Thread Direction:
Left Hand
Inside Diameter:
25mm
Technical
Thread Direction -502 (Left)
d 25mm
G (Thread) M24x2mm
B 31mm
C1 22mm
h 94mm
d1 29.5mm
d2 60mm
dk 42.8mm
l1 57mm
l2 124mm
l7 30mm
tilt angle α 15 deg
weight 0.64kg
basic load rating dyn C 28 kN
basic load rating stat Co 70 kN
radial clearance CN 60-120 µm
