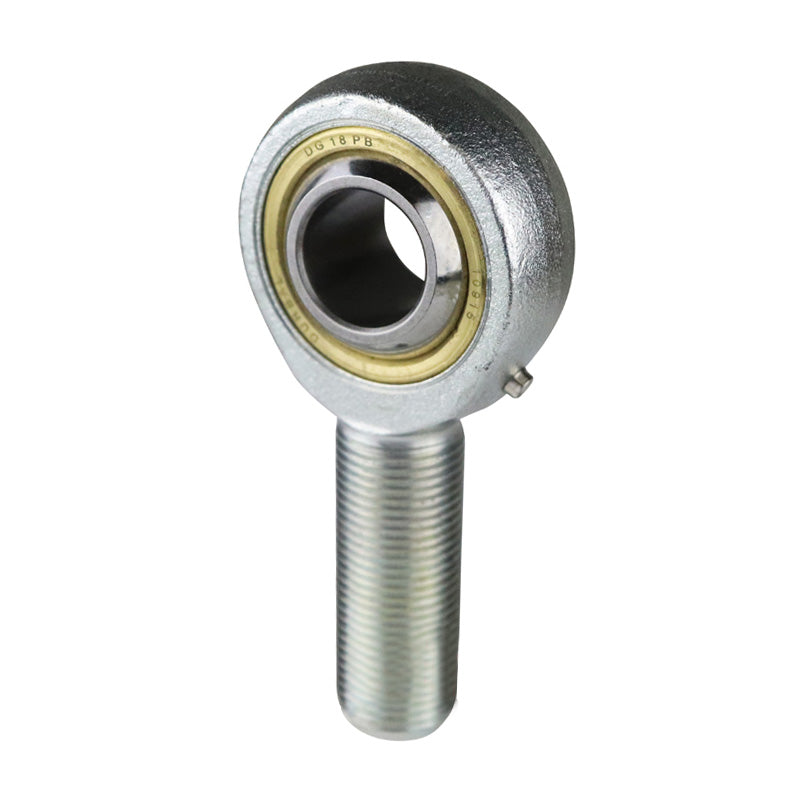

• Durbal BEMN30-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M30x2 Thread
  • Durbal
1 2

SKU: BEMN30-20-501-DURB

Durbal BEMN30-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M30x2 Thread

Durbal BEMN30-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M30x2 Thread
$142.91 ex VAT
$142.91 ex VAT
Sale Sold out

Equivalent to: GAKR30PB SAKAC30M

In stock

Price Break
10+ $95.73
19+ $90.35
29+ $89.27
39+ $88.20
49+ $87.12
74+ $86.05
99+ $80.67
199+ $79.59
249+ $78.52
499+ $77.44
999+ $75.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Durbal - High Quality
Thread Size:
M30x2
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
30mm
Technical
Thread Direction -501 (Right)
d 30mm
G (Thread) M30x2mm
B 37mm
C1 25mm
h 110mm
d1 34.8mm
d2 70mm
dk 50.75mm
l1 66mm
l2 145mm
l7 35mm
tilt angle α 15 deg
weight 1.1kg
basic load rating dyn C 36 kN
basic load rating stat Co 90 kN
radial clearance CN 60-120 µm
