SKU: BF25-MB

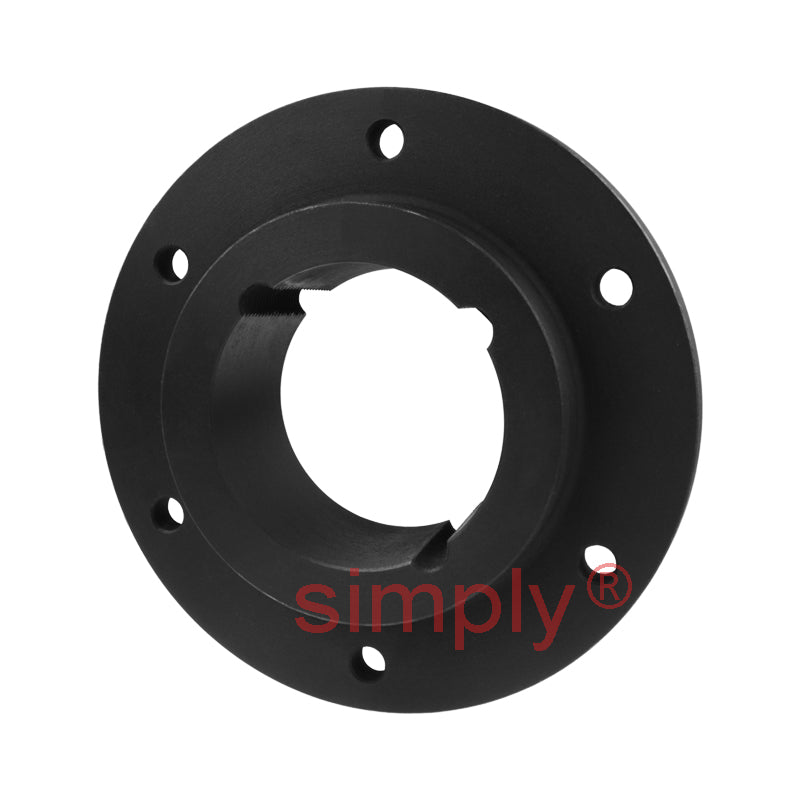

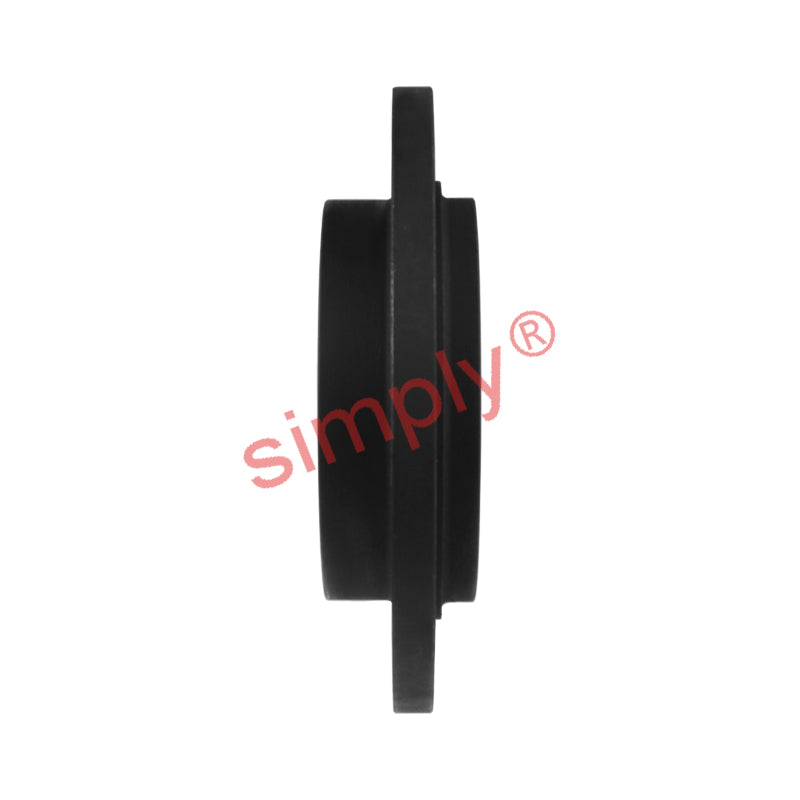

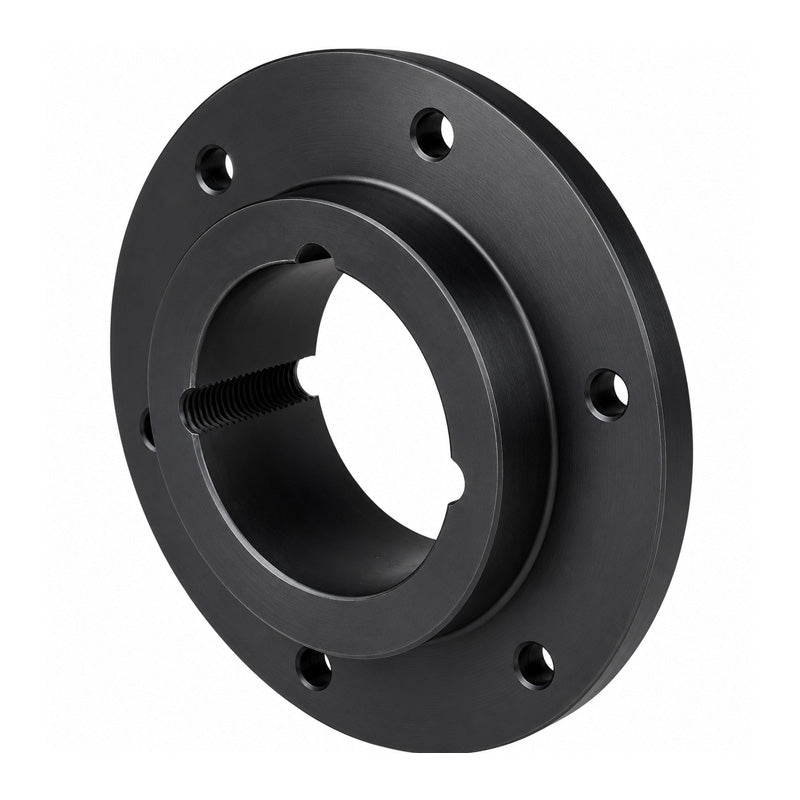

Major Branded BF25 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
Major Branded BF25 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
Regular price
$67.59
ex VAT
Regular price
Sale price
$67.59
ex VAT
In stock
Price Break
3+
$45.27
5+
$42.73
9+
$42.22
19+
$41.71
49+
$41.20
74+
$40.69
99+
$38.15
199+
$37.64
249+
$37.13
499+
$36.62
999+
$35.61
Quantity
Couldn't load pickup availability
Description
Description
Cast Iron Bolt-on-Hub Shaft Fixings: These Bolt-on-Hubs feature a tapered bore and are designed for use with universally accepted tapered bushes. They provide a convenient means of securing fan rotors, impellers, agitators and other devices which must be fastened firmly to shafts. We supply both BF and SM style Bolt-on-Hubs which is the complete range. These hubs are manufactured from GG22 cast iron and are phosphated for extra rust protection.
Benefit: Excellent resistance to rust
- Brand / Quality:
- Major Brand - High Quality
- Bush Size:
- 2517
- Outside Diameter:
- 185mm
- Width:
- 44mm
Technical
Technical
| Hub Reference | BF25 |
|---|---|
| Bush Number | 2517 |
| A | 185mm |
| B | 130mm |
| C | 155mm |
| D | 44mm |
| E | 11.5mm |
| F | 120mm |
| G | 119mm |
| H | 20mm |
| J | 6 x 10.5mm |
