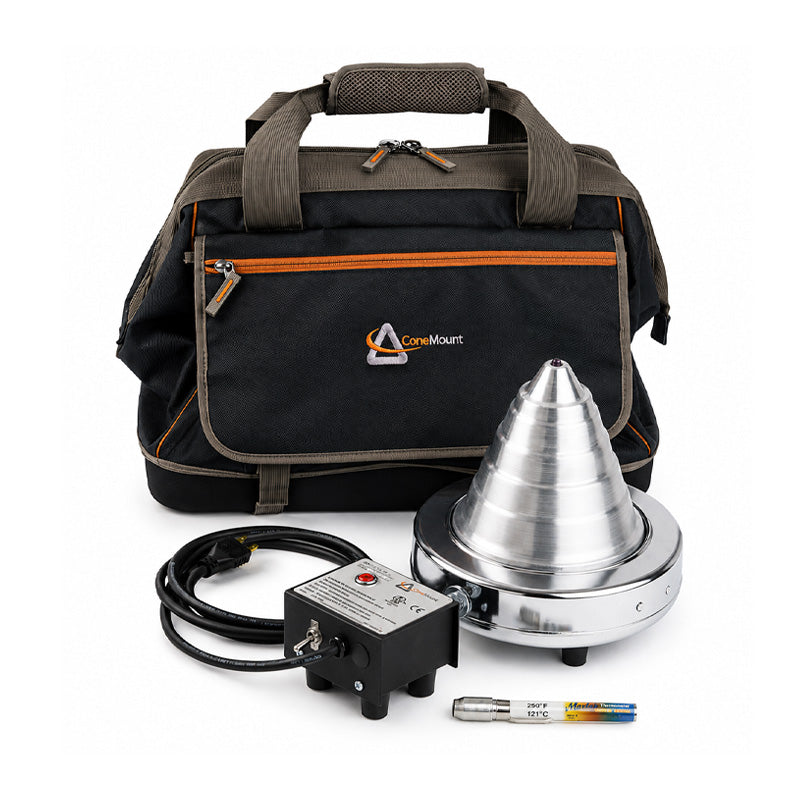

ConeMount BH-02-S Cone Bearing Heater 3/4 - 8 inch (20-205mm) 240V - Allow 2-3 Days

ConeMount BH-02-S Cone Bearing Heater The S model ConeMount bearing heater can accommodate bearings with inner diameters from 20-205 mm, which means you can service just about anything in your facility. The S model is monitored with thermostat preset at 250 deg C/121 deg C, which is placed on the bearing inner race. When the inner race reaches 250 deg C/121 deg C, the unit and control light shut off, the bearing is ready for mounting. It takes between 1 and 12 minutes, depending on bearing size to reach optimal temperature, a fraction of the time using other methods. By heating the bearing, the diameter increases enough to easily slip the bearing onto the shaft without hammering or using a press. When the bearing cools, it is flush, square and tightly attached to the shaft. Each heater is supplied with gloves and temperature indicating crayon.
Benefits: Portable, Easy to Use, Reliable, Non-Magnetizing

Brand / Quality:

ConeMount - High Quality
