SKU: BH-2220

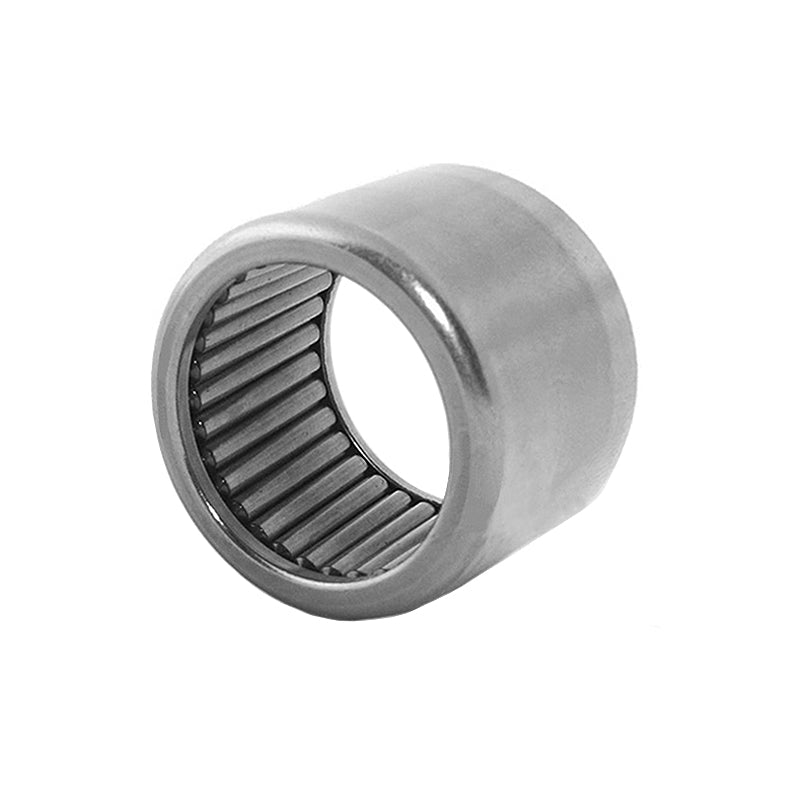

Major Brand BH2220 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-3/8x1-3/4x1-1/4 inch - Allow 2-3 Days
Major Brand BH2220 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-3/8x1-3/4x1-1/4 inch - Allow 2-3 Days
Out of stock
Share this product
Description
Description
Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Outside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Width:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Inside Diameter | 34.93mm = 1.375 inch |
|---|---|
| Outside Diameter | 44.45mm = 1.75 inch |
| Width | 31.75mm = 1.25 inch |
| Dynamic load C | 59.6 kN |
| Static load Co | 126 kN |
| S max | 34.925mm = 1.375 inch |
| S min | 34.912mm = 1.3745 inch |
| H max | 44.463mm = 1.7505 inch |
| H min | 44.437mm = 1.7495 inch |
