SKU: BHAM.2212
BHAM2212 Needle Roller Bearing 1-3/8x1-3/4x3/4 inch - Allow 2-3 Days
BHAM2212 Needle Roller Bearing 1-3/8x1-3/4x3/4 inch - Allow 2-3 Days
Regular price
$7.32
ex VAT
Regular price
Sale price
$7.32
ex VAT
Equivalent to: MJH22121 BCH2212
In stock
Price Break
10+
$5.45
20+
$5.23
30+
$5.12
40+
$4.96
50+
$4.85
75+
$4.57
100+
$3.86
200+
$0.00
250+
$0.00
500+
$0.00
1000+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|

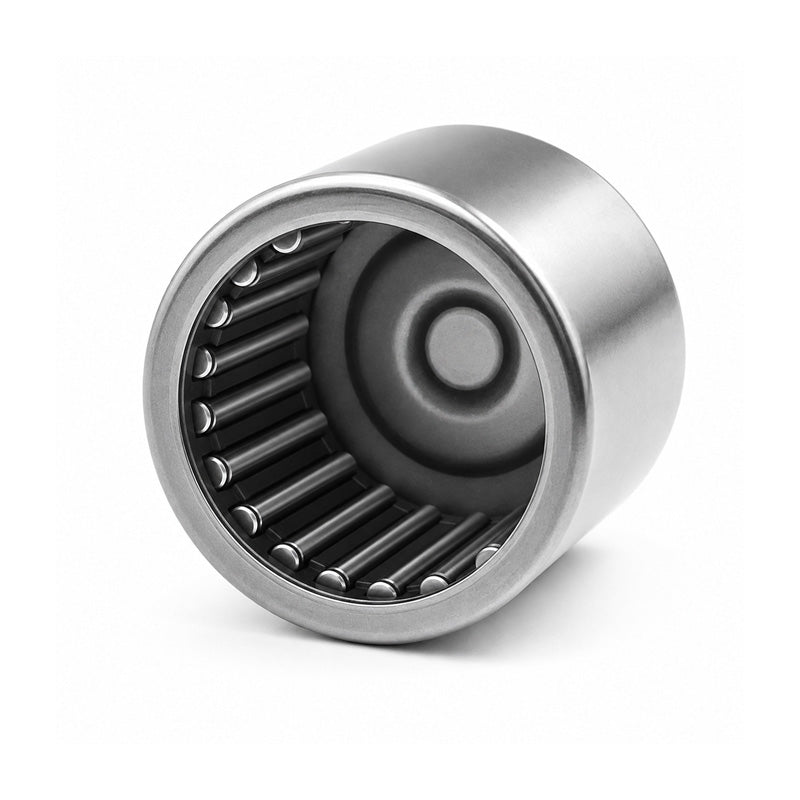

Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Outside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Fw | 1-3/8 inch |
|---|---|
| D | 1-3/4 inch |
| C | 3/4 inch |
| Dynamic Load Cor | 24800 N |
| Static Load Cr | 38800 N |
| Weight | 0.059 kg |
