SKU: BK0408T2-NTN

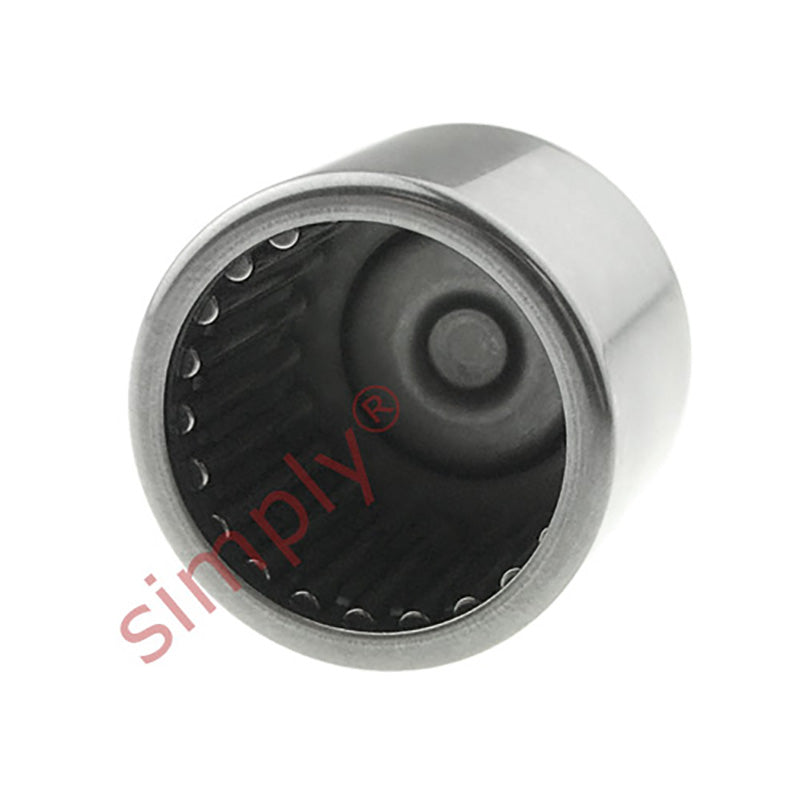

NTN BK0408T2 Drawn Cup Needle Roller Bearing with Closed End 4x8x8mm
NTN BK0408T2 Drawn Cup Needle Roller Bearing with Closed End 4x8x8mm
Regular price
$6.31
ex VAT
Regular price
Sale price
$6.31
ex VAT
In stock
Price Break
3+
$4.23
4+
$3.99
9+
$3.94
19+
$3.90
49+
$3.85
99+
$3.80
499+
$3.56
999+
$3.52
1999+
$3.47
2999+
$3.42
4999+
$3.33
Quantity
Couldn't load pickup availability
Description
Description
BK Drawn Cup Type Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 4mm
- Outside Diameter:
- 8mm
- Width:
- 8mm
Technical
Technical
| Fw - Under rollers diameter | 4mm |
|---|---|
| D - Outside diameter | 8mm |
| C - Width of bearing, drawn cup or outer ring | 8mm |
| C1 - Max drawn cup closed end thickness | 1.6mm |
| Lubrication hole on outer ring? | No |
| Cr - Dynamic load rating | 1.77 kN |
| C0r - Static load rating | 1.27 kN |
| N - Grease lubrication limit speed | 30000 tr/min |
| N - Oil lubrication limit speed | 45000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
