SKU: BK0609T2/2AS-NTN

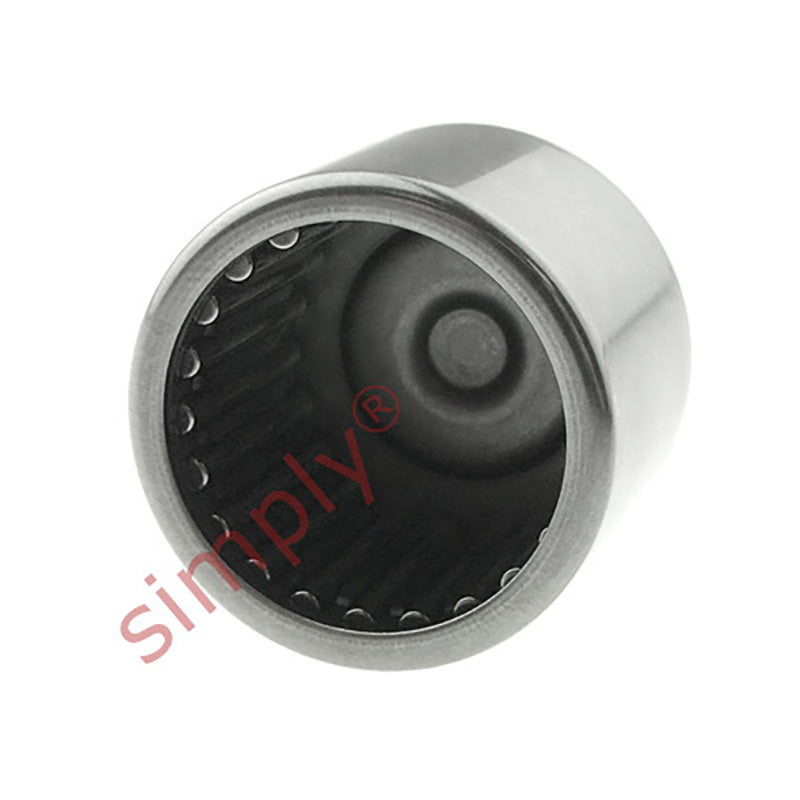

NTN BK0609T2/2AS Drawn Cup Needle Roller Bearing with Closed End 6x10x9mm - Allow 2-3 Days

NTN BK0609T2/2AS Drawn Cup Needle Roller Bearing with Closed End 6x10x9mm - Allow 2-3 Days
Regular price $6.35 ex VAT
Regular price Sale price $6.35 ex VAT
Sale Sold out

In stock

Price Break
3+ $4.73
4+ $4.54
9+ $4.45
19+ $4.30
49+ $4.21
99+ $3.97
499+ $3.35
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 6mm
D - Outside diameter 10mm
C - Width of bearing, drawn cup or outer ring 9mm
C1 - Max drawn cup closed end thickness 1.6mm
Lubrication hole on outer ring? No
Cr - Dynamic load rating 2.66 kN
C0r - Static load rating 2.28 kN
N - Grease lubrication limit speed 25000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
