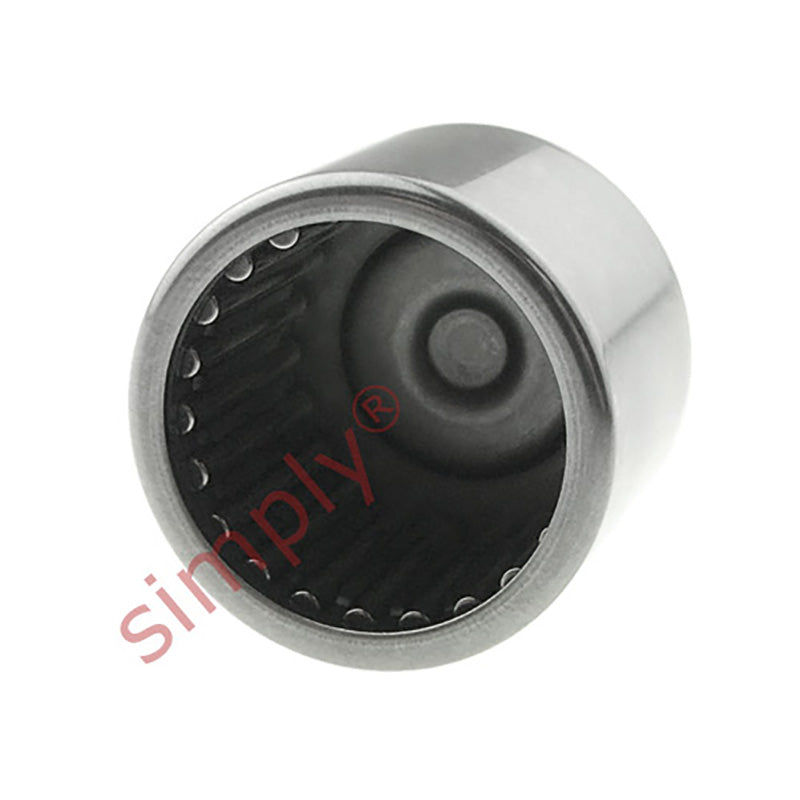

Major Brand BK0709 Drawn Cup Type Needle Roller Bearing with One Closed End 7x11x9mm
Major Brand BK0709 Drawn Cup Type Needle Roller Bearing with One Closed End 7x11x9mm
Regular price
$7.29
ex VAT
Regular price
Sale price
$7.29
ex VAT
In stock
Price Break
10+
$4.89
19+
$4.61
29+
$4.56
39+
$4.50
49+
$4.45
74+
$4.39
99+
$4.12
199+
$4.06
249+
$4.01
499+
$3.95
999+
$3.84
Quantity
Couldn't load pickup availability
Description
Description
|
BK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 7mm
- Outside Diameter:
- 11mm
- Width:
- 9mm
Technical
Technical
| Fw | 7mm |
|---|---|
| D | 11mm |
| C | 9mm |
| Dynamic load | 3030 N |
| Static load | 3050 N |
| Fatigue load limit Pu | 325 N |
| Speed in grease | 18000 rpm |
| Speed in oil | 28000 rpm |
| C1 | 7.4mm |
| r1r2 min | 0.4mm |
| Da max | 7.3mm |
| ra max | 0.4mm |
| Seal | G7x11x2S |
| Weight | 2.9 g |
