SKU: BK0912-MB
Major Brand BK0912 Drawn Cup Type Needle Roller Bearing with One Closed End 9x13x12mm
- Regular price
- $7.48 ex VAT
- Sale price
- $7.48
- Regular price
-
In stock
Quantity Price Breaks
10
$6.66
19
$6.28
29
$6.21
39
$6.13
49
$6.06
74
$5.98
99
$5.61
199
$5.54
249
$5.46
499
$5.39
999
$5.24
SKU:
BK0912-MB
Major Brand BK0912 Drawn Cup Type Needle Roller Bearing with One Closed End 9x13x12mm
- Regular price
- $7.48 ex VAT
- Sale price
- $7.48
- Regular price
-
Description
|

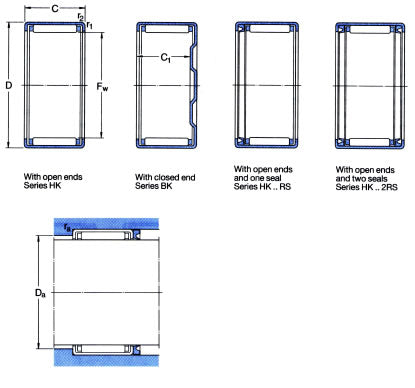

BK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 9mm |
| D | = | 13mm |
| C | = | 12mm |
| Dynamic load | = | 5120 N |
| Static load | = | 6400 N |
| Fatigue load limit Pu | = | 720 N |
| Speed in grease | = | 16000 rpm |
| Speed in oil | = | 24000 rpm |
| C1 | = | 10.4mm |
| r1r2 min | = | 0.4mm |
| Da max | = | 9.3mm |
| ra max | = | 0.4mm |
| Inner ring | = | IR6x9x12 |
| Seal | = | G9x13x3 |
| Weight | = | 4.9 g |
