• NTN BK1612 Drawn Cup Needle Roller Bearing with Closed End 16x22x12mm
  • NTN
1 2

SKU: BK1612-NTN

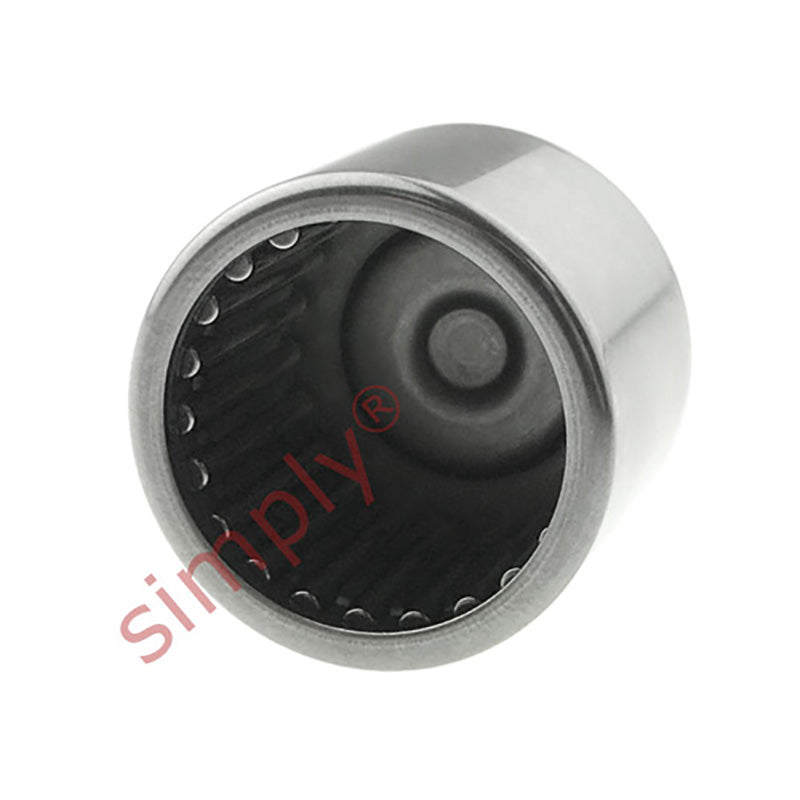

NTN BK1612 Drawn Cup Needle Roller Bearing with Closed End 16x22x12mm

NTN BK1612 Drawn Cup Needle Roller Bearing with Closed End 16x22x12mm
$7.96 ex VAT
$7.96 ex VAT
Sale Sold out

In stock

Price Break
3+ $5.33
4+ $5.03
9+ $4.97
19+ $4.91
49+ $4.85
99+ $4.79
499+ $4.49
999+ $4.43
1999+ $4.37
2999+ $4.31
4999+ $4.19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
16mm
Outside Diameter:
22mm
Width:
12mm
Technical
Fw - Under rollers diameter 16mm
D - Outside diameter 22mm
C - Width of bearing, drawn cup or outer ring 12mm
C1 - Max drawn cup closed end thickness 2.7mm
Lubrication hole on outer ring? No
Inner ring reference IR12X16X13
Cr - Dynamic load rating 7.75 kN
C0r - Static load rating 9.7 kN
N - Grease lubrication limit speed 10000 tr/min
N - Oil lubrication limit speed 15000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
