NTN BK1622ZWD Drawn Cup Double Row Needle Roller Bearing with Closed End 16x22x22mm - Allow 2-3 Days
NTN BK1622ZWD Drawn Cup Double Row Needle Roller Bearing with Closed End 16x22x22mm - Allow 2-3 Days
Regular price
$7.32
ex VAT
Regular price
Sale price
$7.32
ex VAT
In stock
Price Break
3+
$5.45
4+
$5.23
9+
$5.12
19+
$4.96
49+
$4.85
99+
$4.57
499+
$3.86
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description

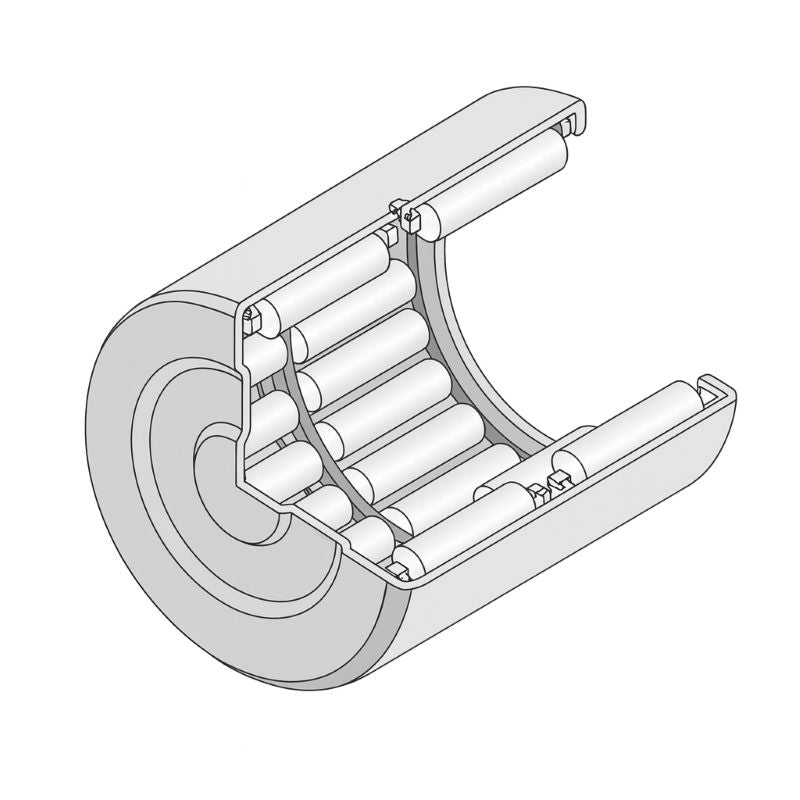

BK Drawn Cup Type Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 22mm
- Width:
- 22mm
Technical
Technical
| Fw - Under rollers diameter | 16mm |
|---|---|
| D - Outside diameter | 22mm |
| C - Width of bearing, drawn cup or outer ring | 22mm |
| C1 - Max drawn cup closed end thickness | 2.7mm |
| Lubrication hole on outer ring? | Yes |
| k - Lubrication hole diameter | 2.5mm |
| Cr - Dynamic load rating | 13.3 kN |
| C0r - Static load rating | 19.4 kN |
| N - Grease lubrication limit speed | 10000 tr/min |
| N - Oil lubrication limit speed | 15000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
