SKU: BK2030ZWD-NTN

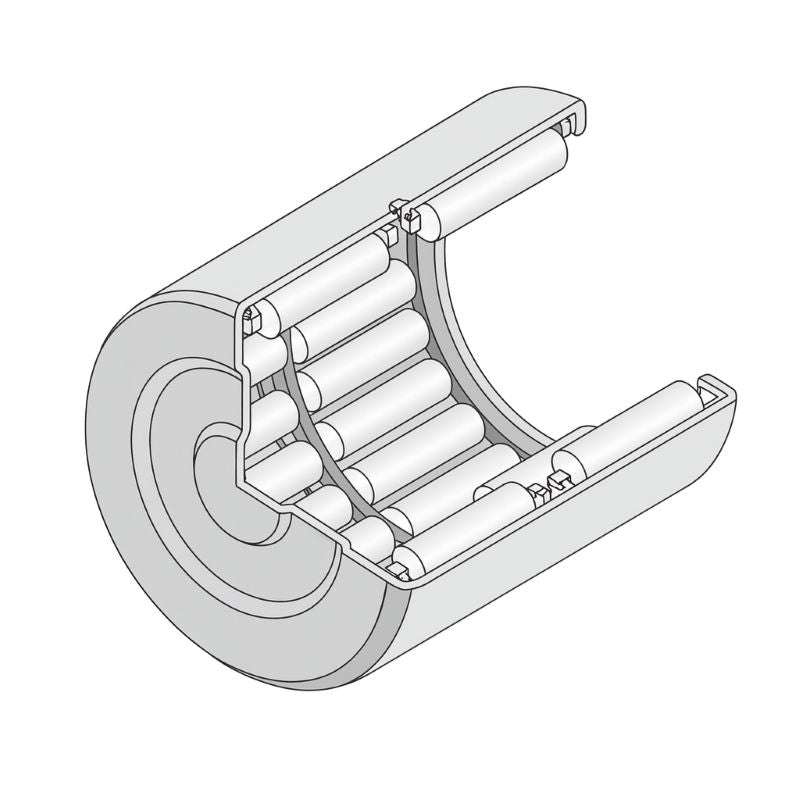

NTN BK2030ZWD Drawn Cup Double Row Needle Roller Bearing with Closed End 20x26x30mm - Allow 2-3 Days
NTN BK2030ZWD Drawn Cup Double Row Needle Roller Bearing with Closed End 20x26x30mm - Allow 2-3 Days
Regular price
$8.81
ex VAT
Regular price
Sale price
$8.81
ex VAT
In stock
Price Break
3+
$6.56
4+
$6.30
9+
$6.17
19+
$5.97
49+
$5.83
99+
$5.50
499+
$4.64
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
BK Drawn Cup Type Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 26mm
- Width:
- 30mm
Technical
Technical
| Fw - Under rollers diameter | 20mm |
|---|---|
| D - Outside diameter | 26mm |
| C - Width of bearing, drawn cup or outer ring | 30mm |
| C1 - Max drawn cup closed end thickness | 2.7mm |
| Lubrication hole on outer ring? | Yes |
| k - Lubrication hole diameter | 2.5mm |
| Inner ring reference | IR17X20X30.5 |
| Cr - Dynamic load rating | 22.2 kN |
| C0r - Static load rating | 40 kN |
| N - Grease lubrication limit speed | 8000 tr/min |
| N - Oil lubrication limit speed | 12000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
