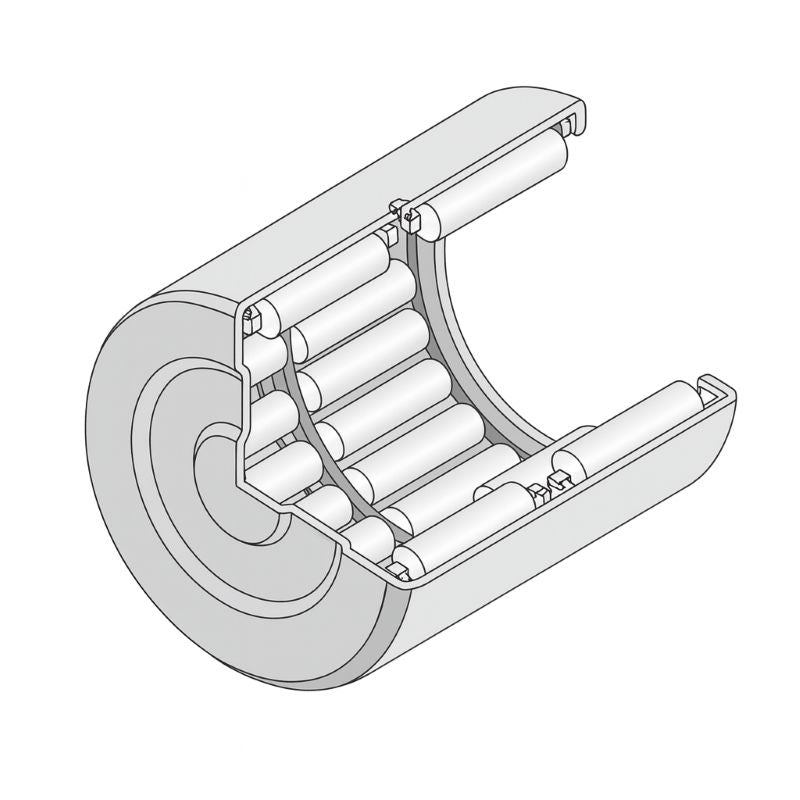

NTN BK2538ZWD Drawn Cup Double Row Needle Roller Bearing with Closed End 25x32x38mm

Name: NTN BK2538ZWD Drawn Cup Double Row Needle Roller Bearing with Closed End 25x32x38mm
Brand: NTN
SKU: BK2538ZWD-NTN
Price: 11.63 USD
Availability: InStock

$11.63 ex VAT

Sale Sold out

In stock

Price Break

3+ $7.79

4+ $7.35

9+ $7.26

19+ $7.18

49+ $7.09

99+ $7.00

499+ $6.56

999+ $6.48

1999+ $6.39

2999+ $6.30

4999+ $6.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: NTN - High Quality
Inside Diameter:: 25mm
Outside Diameter:: 32mm
Width:: 38mm

Technical

Fw - Under rollers diameter	25mm
D - Outside diameter	32mm
C - Width of bearing, drawn cup or outer ring	38mm
C1 - Max drawn cup closed end thickness	2.7mm
Lubrication hole on outer ring?	Yes
k - Lubrication hole diameter	2.5mm
Inner ring reference	IR20X25X38.5
Cr - Dynamic load rating	35 kN
C0r - Static load rating	65.5 kN
N - Grease lubrication limit speed	6500 tr/min
N - Oil lubrication limit speed	9500 tr/min
Tmin - Minimum operating temperature	-20 Deg C
Tmax - Maximum operating temperature	+120 Deg C
