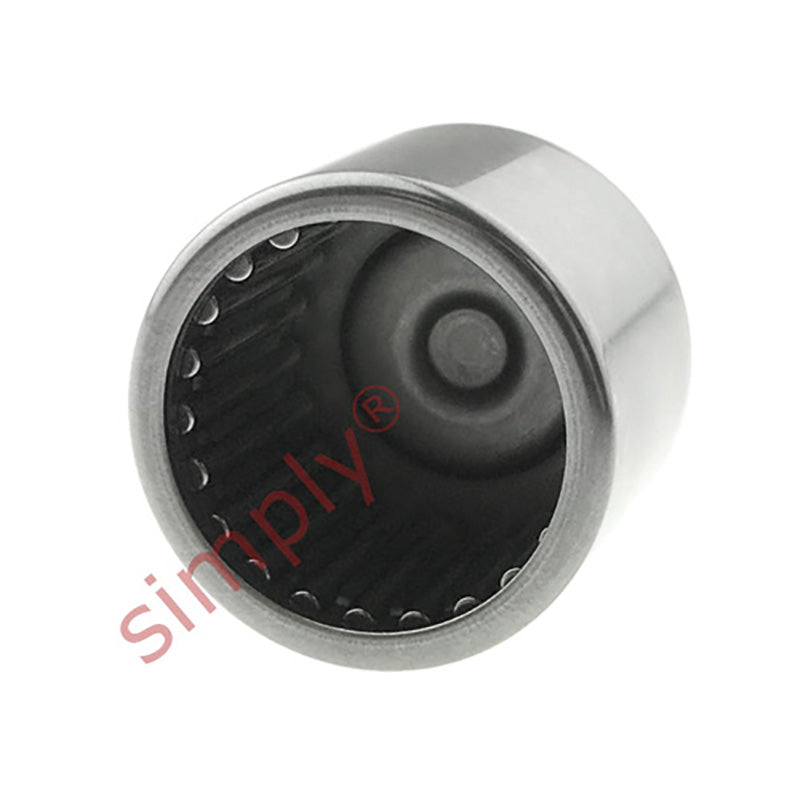

• NTN BK3016 Drawn Cup Needle Roller Bearing with Closed End 30x37x16mm
  • NTN
1 2

SKU: BK3016-NTN

NTN BK3016 Drawn Cup Needle Roller Bearing with Closed End 30x37x16mm

NTN BK3016 Drawn Cup Needle Roller Bearing with Closed End 30x37x16mm
$13.67 ex VAT
$13.67 ex VAT
Sale Sold out

In stock

Price Break
3+ $9.16
4+ $8.64
9+ $8.54
19+ $8.44
49+ $8.33
99+ $8.23
499+ $7.72
999+ $7.61
1999+ $7.51
2999+ $7.41
4999+ $7.20

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
30mm
Outside Diameter:
37mm
Width:
16mm
Technical
Fw - Under rollers diameter 30mm
D - Outside diameter 37mm
C - Width of bearing, drawn cup or outer ring 16mm
C1 - Max drawn cup closed end thickness 2.7mm
Lubrication hole on outer ring? No
Inner ring reference IR25X30X17
Cr - Dynamic load rating 18.1 kN
C0r - Static load rating 30 kN
N - Grease lubrication limit speed 5500 tr/min
N - Oil lubrication limit speed 8000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
