SKU: BK3038ZWD-NTN

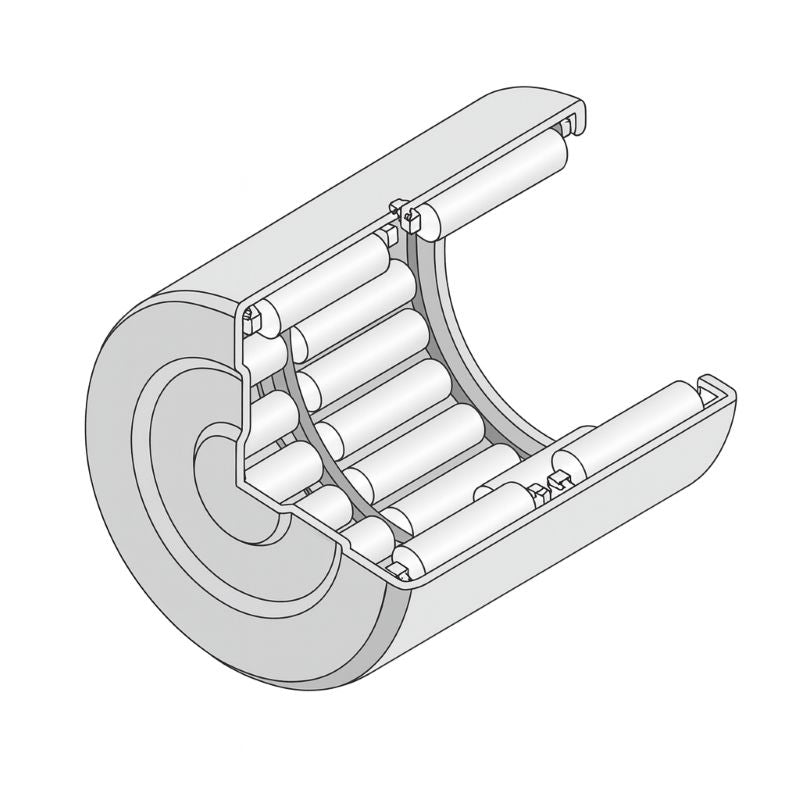

NTN BK3038ZWD Drawn Cup Double Row Needle Roller Bearing with Closed End 30x37x38mm - Allow 2-3 Days
NTN BK3038ZWD Drawn Cup Double Row Needle Roller Bearing with Closed End 30x37x38mm - Allow 2-3 Days
Regular price
$10.27
ex VAT
Regular price
Sale price
$10.27
ex VAT
In stock
Price Break
3+
$7.65
4+
$7.34
9+
$7.19
19+
$6.96
49+
$6.80
99+
$6.42
499+
$5.41
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
BK Drawn Cup Type Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 37mm
- Width:
- 38mm
Technical
Technical
| Fw - Under rollers diameter | 30mm |
|---|---|
| D - Outside diameter | 37mm |
| C - Width of bearing, drawn cup or outer ring | 38mm |
| C1 - Max drawn cup closed end thickness | 2.7mm |
| Lubrication hole on outer ring? | Yes |
| k - Lubrication hole diameter | 2.5mm |
| Inner ring reference | IR25X30X38.5 |
| Cr - Dynamic load rating | 38.5 kN |
| C0r - Static load rating | 78.5 kN |
| N - Grease lubrication limit speed | 5500 tr/min |
| N - Oil lubrication limit speed | 8000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
