• SKF BMB6204048S2EA002A Sensor Bearing Unit 20x47x14mm
1 1

SKU: BMB-6204/048S2/EA002A-SKF

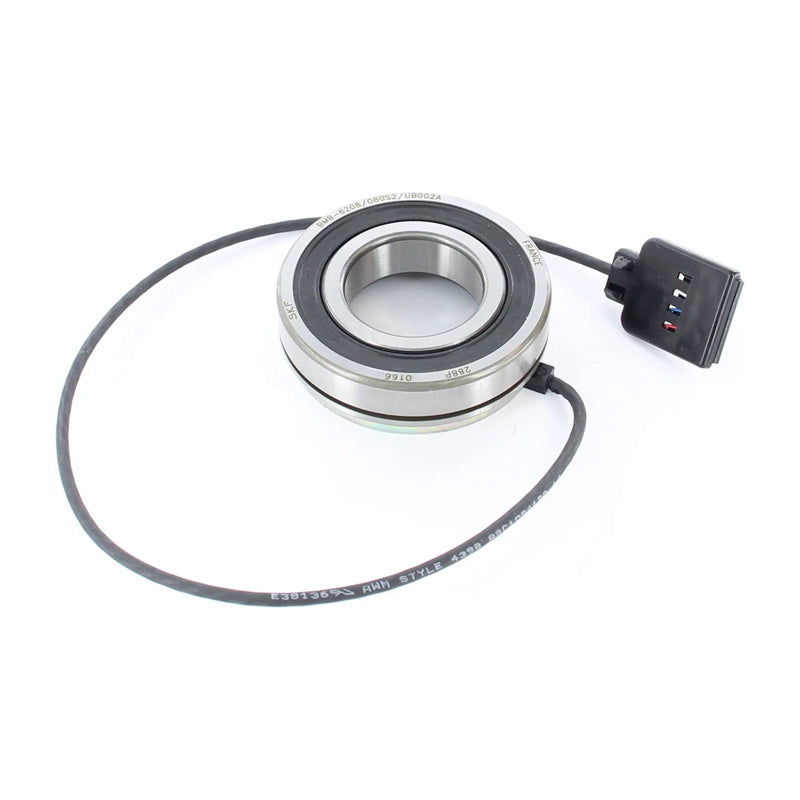

SKF BMB6204048S2EA002A Sensor Bearing Unit 20x47x14mm

SKF BMB6204048S2EA002A Sensor Bearing Unit 20x47x14mm
$367.30 ex VAT
$367.30 ex VAT
Sale Sold out

Equivalent to: BMB-6204/048S2/UA002A

In stock

Price Break
3+ $246.03
5+ $232.21
9+ $229.44
14+ $226.68
15+ $223.91
20+ $221.15
49+ $207.33
99+ $204.56
249+ $201.80
499+ $199.03
999+ $193.51

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Sensor Bearings: Are classed as mechantronic machine components covering the fields of both bearing and sensor engineering component. They provide the ideal versatile combination of bearing and sensor. The sensors are shielded from external influences, the sensor body and impulse rings are mechanically attached to each other providing an integral ready to mount unit.
Benefits: Combined sensor / bearing
Brand / Quality:
SKF - High Quality
Inside Diameter:
20mm
Outside Diameter:
47mm
Width:
14mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
d 20mm
D 47mm
B 14mm
Dynamic load Cr 13.5 kN
Static load Cor 6.55 kN
Fatigue load limit Pu 0.28 rpm
Limiting speed 10000 rpm
No of pulses 48
Period accuracy ±3%
Phase shift 90° ±30°
Weight 0.15 kg
d1 28.5mm
d2 26.4mm
D1 40.6mm
D2 46.4mm
b 1.35mm
C 2.06mm
r1r2 min 1mm
da min 25mm
db min 25mm
db max 26.3mm
Da max 42mm
ra max 1mm
Radial internal clearance min 13mm
Radial internal clearance max 28mm
