• SKF BMD6206064S2UA008A Sensor Bearing Unit 30x62x16mm
1 1

SKU: BMD-6206/064S2/UA008A-SKF

SKF BMD6206064S2UA008A Sensor Bearing Unit 30x62x16mm

SKF BMD6206064S2UA008A Sensor Bearing Unit 30x62x16mm
$295.48 ex VAT
$295.48 ex VAT
Sale Sold out

Equivalent to: BMB-6206/064S2/UA002A BMB-6206/064S2/EA002A-SKF

In stock

Price Break
3+ $197.92
5+ $186.80
9+ $184.58
14+ $182.35
15+ $180.13
20+ $177.90
49+ $166.79
99+ $164.56
249+ $162.34
499+ $160.11
999+ $155.67

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

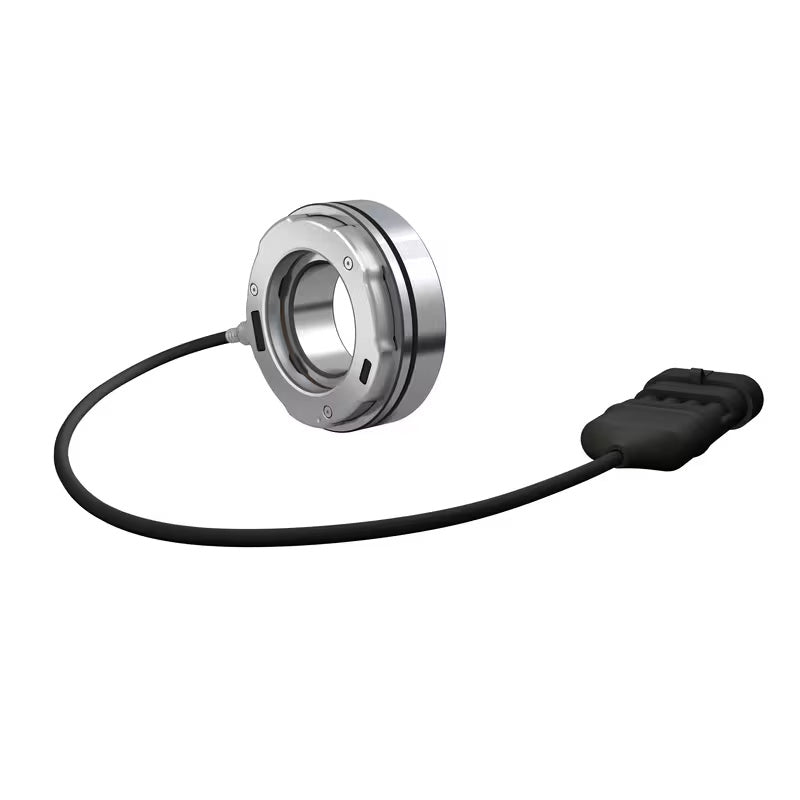

SKF Sensor Bearings: Are classed as mechantronic machine components covering the fields of both bearing and sensor engineering component. They provide the ideal versatile combination of bearing and sensor. The sensors are shielded from external influences, the sensor body and impulse rings are mechanically attached to each other providing an integral ready to mount unit.
Benefits: Combined sensor / bearing
Brand / Quality:
SKF - High Quality
Inside Diameter:
30mm
Outside Diameter:
62mm
Width:
16mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
d 30mm
D 62mm
B 16mm
Dynamic load Cr 20.3 kN
Static load Cor 11.2 kN
Fatigue load limit Pu 0.48 rpm
Limiting speed 7500 rpm
No of pulses 64
Period accuracy ±4%
Phase shift 90° ±45°
Weight 0.22 kg
d1 40.3mm
d2 37.8mm
D1 54.1mm
D2 58mm
b 1.9mm
C 3.28mm
r1r2 min 1mm
da min 35mm
db min 35mm
db max 37.5mm
Da max 57mm
ra max 1mm
Radial internal clearance min 13mm
Radial internal clearance max 28mm
