• SNR BP3S 50-210 Tri-Section Pulling Plate 50x210x31mm - Allow 2-3 Days
  • SNR
1 2

SKU: BP3S-50-210-TRI-SNR

SNR BP3S 50-210 Tri-Section Pulling Plate 50x210x31mm - Allow 2-3 Days

SNR BP3S 50-210 Tri-Section Pulling Plate 50x210x31mm - Allow 2-3 Days
$522.96 ex VAT
$522.96 ex VAT
Sale Sold out

In stock

Price Break
3+ $350.30
5+ $330.62
9+ $326.68
19+ $322.75
49+ $318.81
74+ $314.87
99+ $295.19
199+ $291.26
249+ $287.32
499+ $283.39
999+ $275.51

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

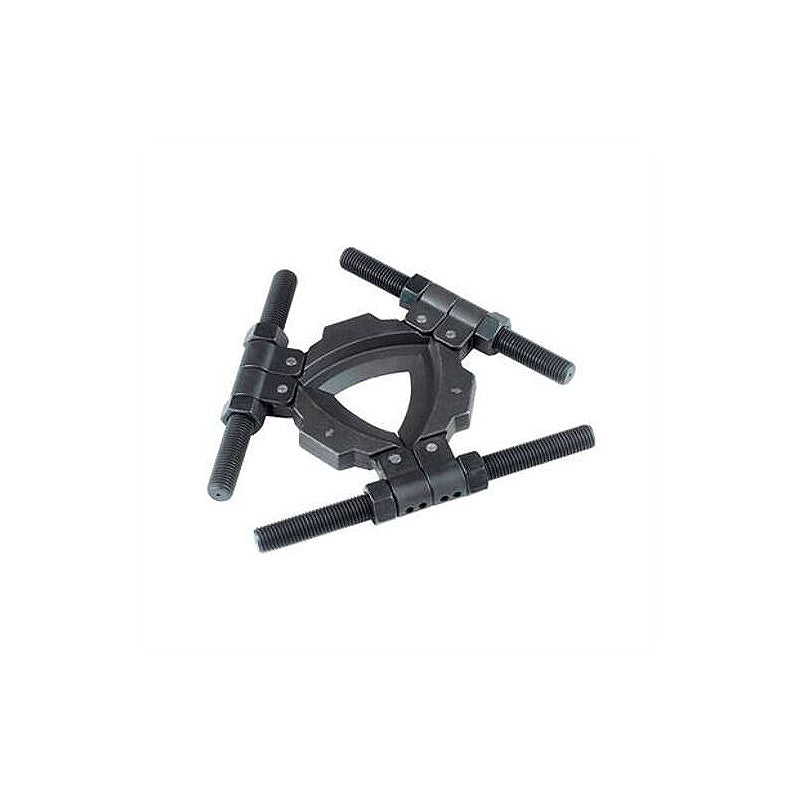

SNR BP3S Tri-Section Pulling Plates: These Tri-Section Pulling Plates offer a wide range of adjustments which are also available in four dimensions. Capable of holding parts with a diameter from 26mm up to 495mm. These Pulling Plates are to be used with the suitable SNR Three-Arm Puller which can be determined by required size and power.
Benefits: High-quality and Wide range of adjustment.

Brand / Quality:
SNR - High Quality
Technical
Capacity 8000kg
Minimum Shaft Diameter A1 50mm
Maximum Shaft Diameter 210mm
Max Spread B 280mm
Length D 285mm
Thread E 3/4 inch - 16 UNF
Thickness F 31mm
Material Forged Steel Alloy
Weight 5.5kg
