• SNR BPES 10-105 Back Puller Kit for Internal and External Gripping - Allow 2-3 Days
  • SNR
1 2

SKU: BPES-10-105-SET-SNR

SNR BPES 10-105 Back Puller Kit for Internal and External Gripping - Allow 2-3 Days

SNR BPES 10-105 Back Puller Kit for Internal and External Gripping - Allow 2-3 Days
$450.31 ex VAT
$450.31 ex VAT
Sale Sold out

In stock

Price Break
3+ $301.59
5+ $284.65
9+ $281.26
19+ $277.87
49+ $274.48
74+ $271.09
99+ $254.15
199+ $250.76
249+ $247.37
499+ $243.98
999+ $237.21

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

SNR BPES Back Puller Kit: This back puller is both a puller and separator which is an essential tool for extraction by internal or external gripping. The seperator allows for removal of a tight-fitting bearing ring in contact with a shoulder.
Benefits: High-quality and multi-functional.

Brand / Quality:
SNR - High Quality
Technical
Capacity 10000kg
Separator Shaft Diameter Range 10mm - 105mm
Separator Outside Diameter Range Maximum of 175mm
Separator Max Reach 150mm
Internal Gripper Puller Bore Diameter Range 159mm - 222mm
Internal Gripper Puller Maximum Reach 160mm
External Gripper Puller Outside Diameter Range 30mm - 155mm
External Gripper Puller Maximum Reach 160mm
Case Dimensions 490x500x130mm

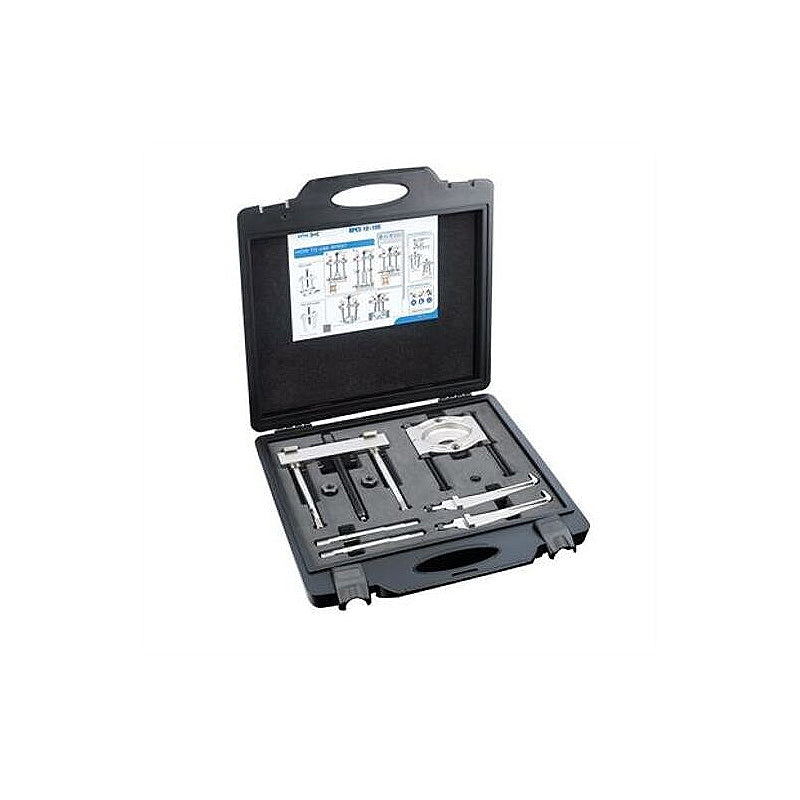

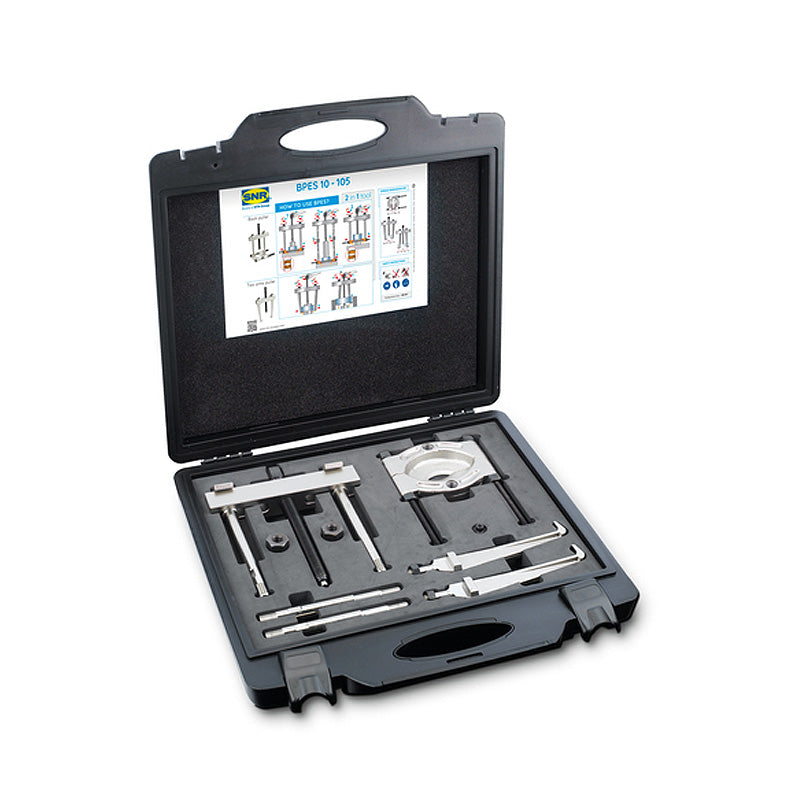

Contents x1 Adjustable Bridge, x1 Separator, x2 Removable Puller Arms, x2 Extensions, x1 Tip Protector, x2 Coupling Nuts
Weight 11kg
