SKU: BR.101812

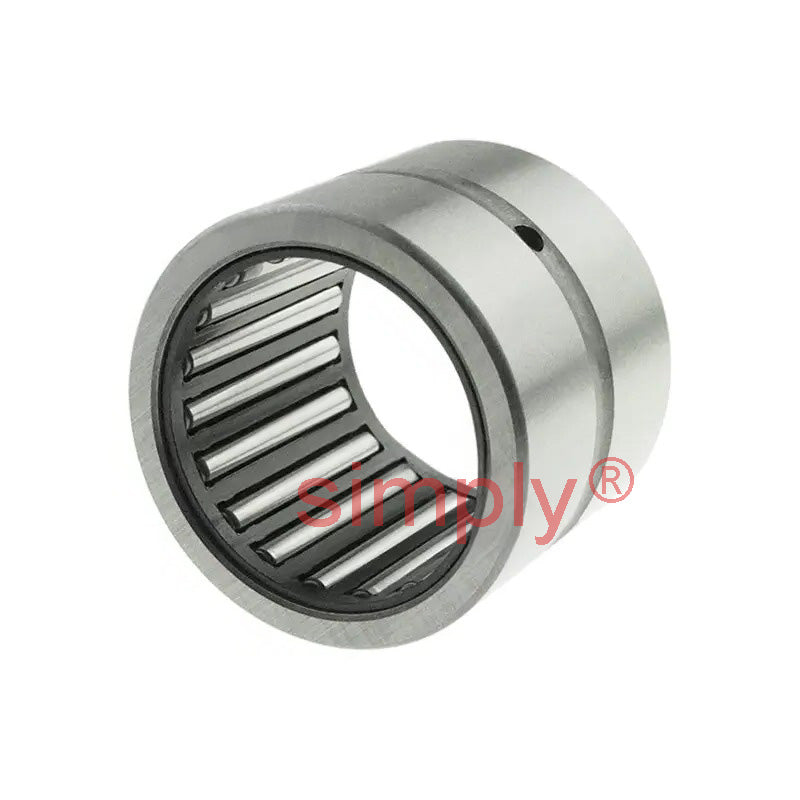

BR101812 Machined Type Imperial Needle Roller Bearing Without Inner Ring 5/8x1-1/8x3/4 inch
- Regular price
- $15.99 ex VAT
- Sale price
- $15.99
- Regular price
-
In stock
Quantity Price Breaks
10
$14.23
20
$13.43
30
$13.27
40
$13.11
50
$12.95
75
$12.79
100
$11.99
200
$11.83
250
$11.67
500
$11.51
1000
$11.19
SKU:
BR.101812
BR101812 Machined Type Imperial Needle Roller Bearing Without Inner Ring 5/8x1-1/8x3/4 inch
- Regular price
- $15.99 ex VAT
- Sale price
- $15.99
- Regular price
-
Description
|
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |

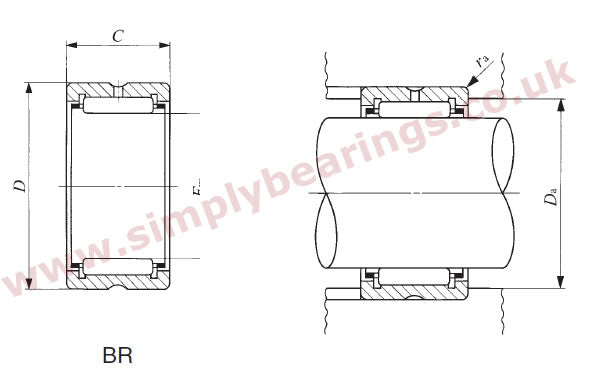

Technical
| Fw | = | 5/8 inch |
| D | = | 1-1/8 inch |
| C | = | 3/4 inch |
| Dynamic Load Cor | = | 18900 N |
| Static Load Cr | = | 19700 N |
| Weight | = | 0.049 kg |
