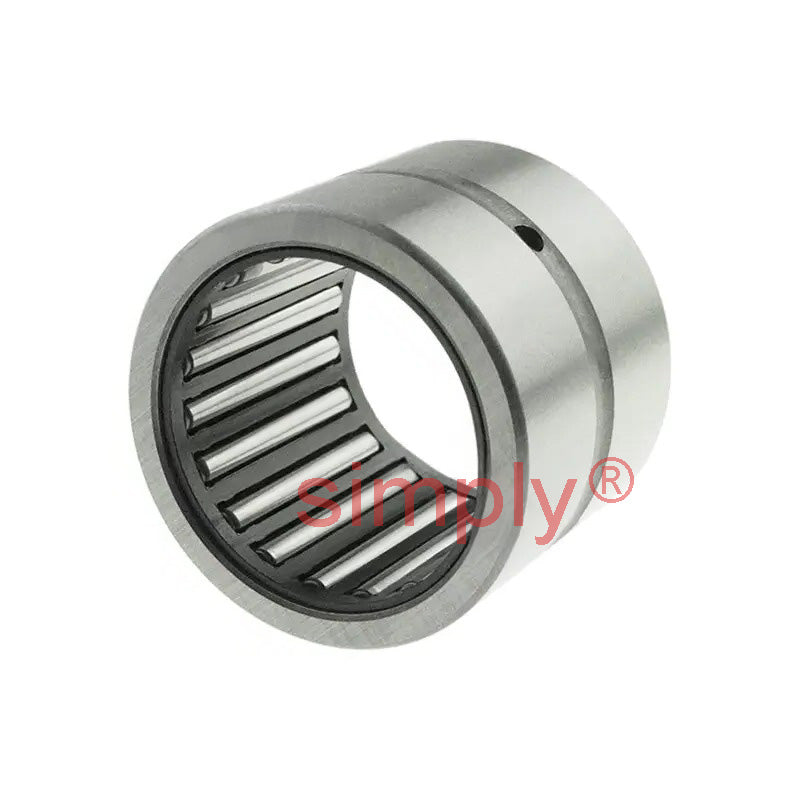

• BR223020 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-3/8x1-7/8x1-1/4 inch
  • IKO
1 2

SKU: BR.223020

BR223020 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-3/8x1-7/8x1-1/4 inch

BR223020 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-3/8x1-7/8x1-1/4 inch
$23.23 ex VAT
$23.23 ex VAT
Sale Sold out

Equivalent to: HJ223020 HJ-223020 MR22 MR-22 SJ7255 NCS2220

In stock

Price Break
10+ $15.56
20+ $14.69
30+ $14.51
40+ $14.34
50+ $14.16
75+ $13.99
100+ $13.11
200+ $12.94
250+ $12.76
500+ $12.59
1000+ $12.24

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads.
Benefits: Economical replacement, needles are retained within machined flange of the outer race.
Brand / Quality:
IKO - High Quality
Inside Diameter:
34.93mm = 1.375 (1-3/8) inch
Outside Diameter:
47.63mm = 1.875 (1-7/8) inch
Width:
31.75mm = 1.25 (1-1/4) inch
Technical
Fw 1-3/8 inch
D 1-7/8 inch
C 1-1/4 inch
Dynamic Load Cor 47700 N
Static Load Cr 78900 N
Weight 0.149 kg
