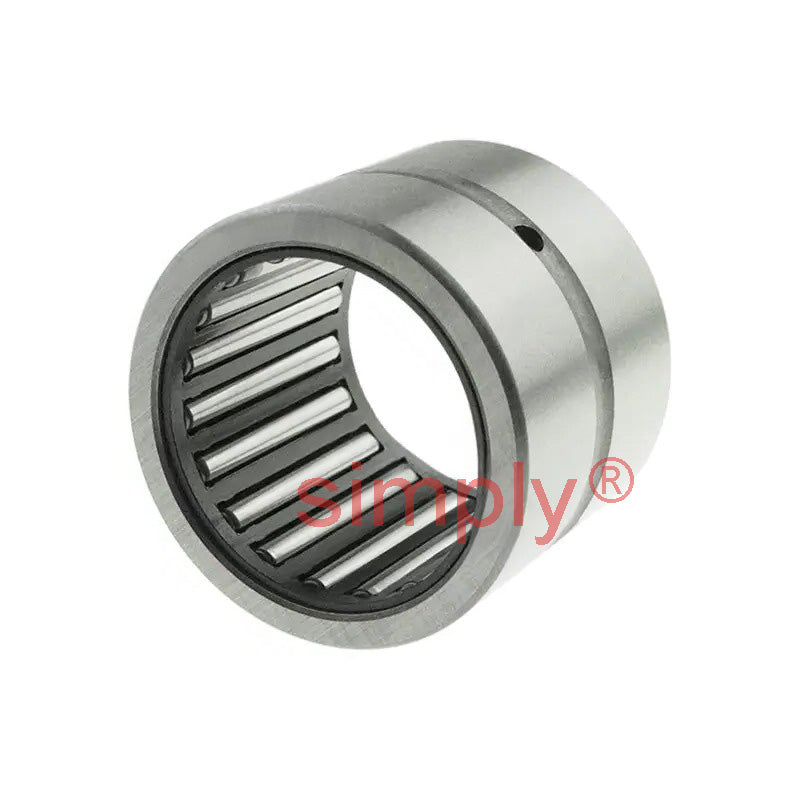

• BR263516 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-5/8x2-3/16x1 inch
  • IKO
1 2

SKU: BR.263516

BR263516 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-5/8x2-3/16x1 inch

BR263516 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-5/8x2-3/16x1 inch
$24.93 ex VAT
$24.93 ex VAT
Sale Sold out

Equivalent to: HJ263516 HJ-263516 MR26N MR-26-N SJ7294 NCS2616

In stock

Price Break
10+ $16.70
20+ $15.76
30+ $15.57
40+ $15.38
50+ $15.20
75+ $15.01
100+ $14.07
200+ $13.88
250+ $13.69
500+ $13.51
1000+ $13.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads.
Benefits: Economical replacement, needles are retained within machined flange of the outer race.
Brand / Quality:
IKO - High Quality
Inside Diameter:
41.28mm = 1.625 (1-5/8) inch
Outside Diameter:
55.56mm = 2.187 (2-3/16) inch
Width:
25.4mm = 1 inch
Technical
Fw 1-5/8 inch
D 2-3/16 inch
C 1 inch
Dynamic Load Cor 44800 N
Static Load Cr 70900 N
Weight 0.158 kg
