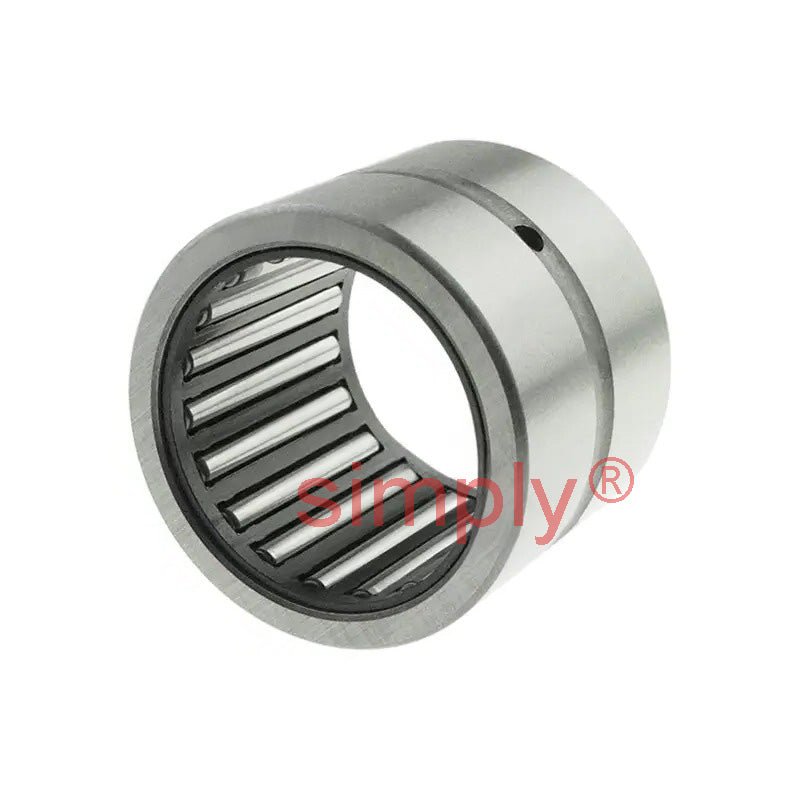

• BR283716 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-3/4x2-5/16x1 inch
  • IKO
1 2

SKU: BR.283716

BR283716 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-3/4x2-5/16x1 inch

BR283716 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-3/4x2-5/16x1 inch
$27.15 ex VAT
$27.15 ex VAT
Sale Sold out

Equivalent to: HJ283716 HJ-283716 MR28N MR-28-N SJ7314 NCS2816

In stock

Price Break
10+ $18.18
20+ $17.16
30+ $16.96
40+ $16.75
50+ $16.55
75+ $16.35
100+ $15.32
200+ $15.12
250+ $14.92
500+ $14.71
1000+ $14.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads.
Benefits: Economical replacement, needles are retained within machined flange of the outer race.
Brand / Quality:
IKO - High Quality
Inside Diameter:
44.45mm = 1.75 (1-3/4) inch
Outside Diameter:
58.73mm = 2.312 (2-5/16) inch
Width:
25.4mm = 1 inch
Technical
Fw 1-3/4 inch
D 2-5/16 inch
C 1 inch
Dynamic Load Cor 47500 N
Static Load Cr 78200 N
Weight 0.17 kg
