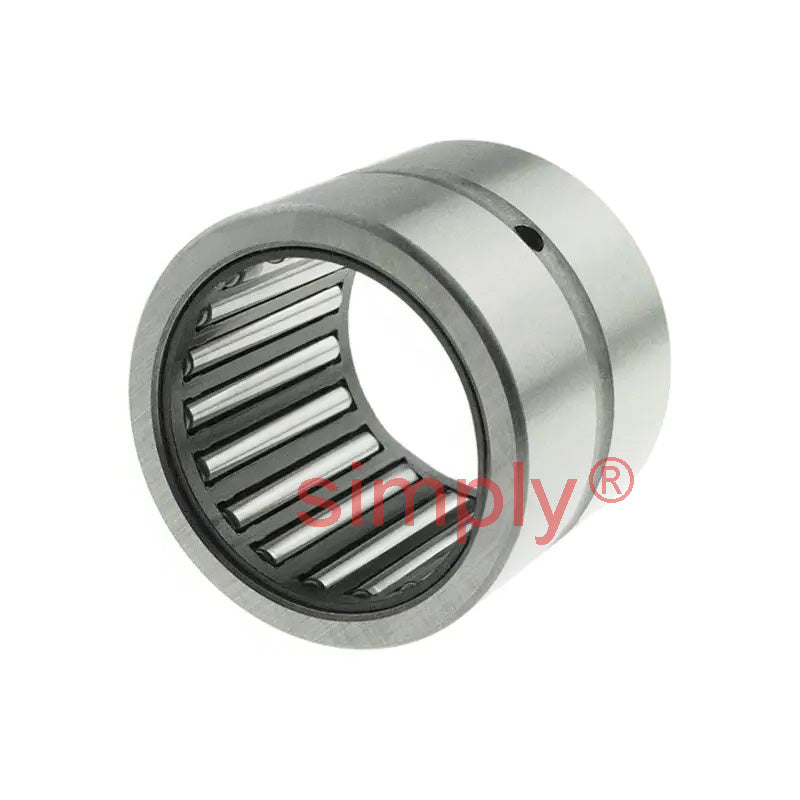

• BR283820 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-3/4x2-3/8x1-1/4 inch
  • IKO
1 2

SKU: BR.283820

BR283820 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-3/4x2-3/8x1-1/4 inch

BR283820 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-3/4x2-3/8x1-1/4 inch
$34.16 ex VAT
$34.16 ex VAT
Sale Sold out

In stock

Price Break
10+ $22.88
20+ $21.59
30+ $21.34
40+ $21.08
50+ $20.82
75+ $20.57
100+ $19.28
200+ $19.02
250+ $18.77
500+ $18.51
1000+ $17.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads.
Benefits: Economical replacement, needles are retained within machined flange of the outer race.
Brand / Quality:
IKO - High Quality
Inside Diameter:
44.45mm = 1.75 (1-3/4) inch
Outside Diameter:
60.33mm = 2.375 (2-3/8) inch
Width:
31.75mm = 1.25 (1-1/4) inch
Technical
Fw 1-3/4 inch
D 2-3/8 inch
C 1-1/4 inch
Dynamic Load Cor 58900 N
Static Load Cr 103000 N
Weight 0.25 kg
