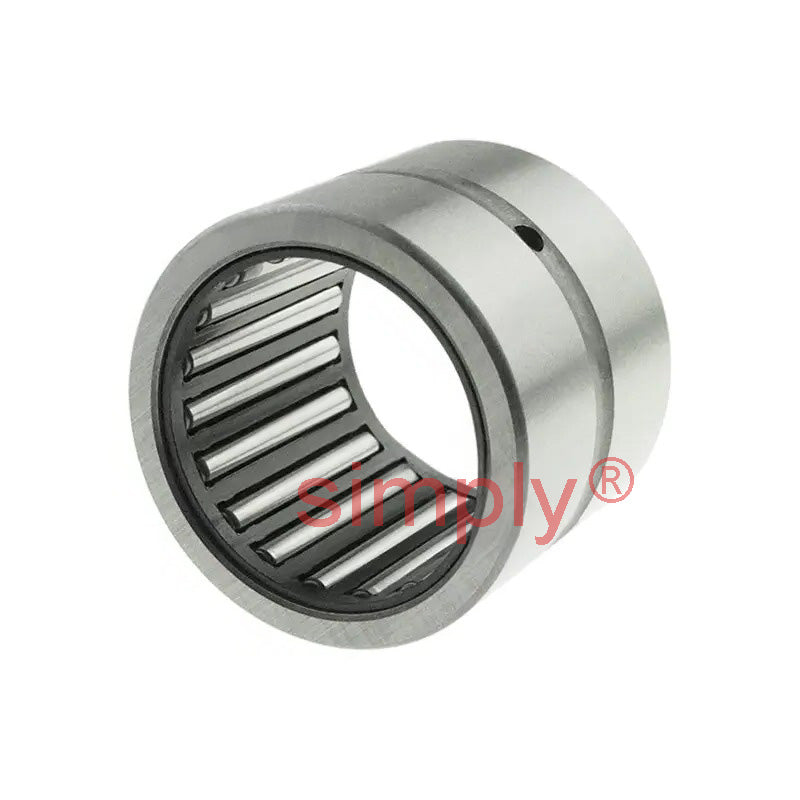

• BR364824 Machined Type Imperial Needle Roller Bearing Without Inner Ring 2-1/4x3x1-1/2 inch
  • IKO
1 2

SKU: BR.364824

BR364824 Machined Type Imperial Needle Roller Bearing Without Inner Ring 2-1/4x3x1-1/2 inch

BR364824 Machined Type Imperial Needle Roller Bearing Without Inner Ring 2-1/4x3x1-1/2 inch
$42.89 ex VAT
$42.89 ex VAT
Sale Sold out

Equivalent to: HJ364824 HJ-364824 MR36N MR-36-N SJ8406 NCS3624

In stock

Price Break
10+ $28.73
20+ $27.11
30+ $26.79
40+ $26.47
50+ $26.15
75+ $25.82
100+ $24.21
200+ $23.89
250+ $23.56
500+ $23.24
1000+ $22.60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads.
Benefits: Economical replacement, needles are retained within machined flange of the outer race.
Brand / Quality:
IKO - High Quality
Inside Diameter:
57.15mm = 2.25 (2-1/4) inch
Outside Diameter:
76.2mm = 3 inch
Width:
38.1mm = 1.5 (1-1/2) inch
Technical
Fw 2-1/4 inch
D 3 inch
C 1-1/2 inch
Dynamic Load Cor 90300 N
Static Load Cr 158000 N
Weight 0.435 kg
