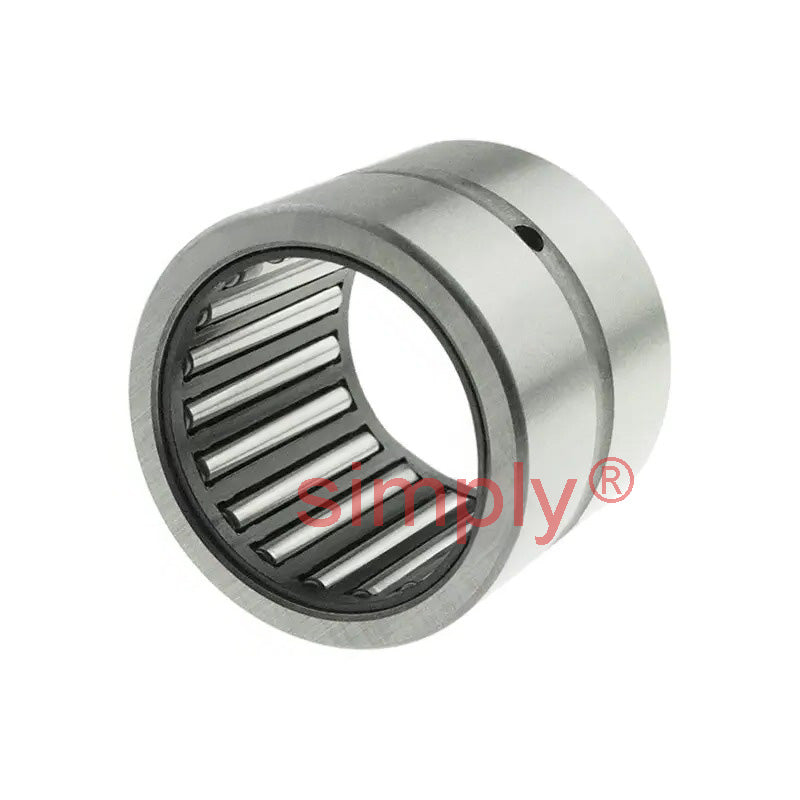

• BR486028 Machined Type Imperial Needle Roller Bearing Without Inner Ring 3x3-3/4x1-3/4 inch
  • IKO
1 2

SKU: BR.486028

BR486028 Machined Type Imperial Needle Roller Bearing Without Inner Ring 3x3-3/4x1-3/4 inch

BR486028 Machined Type Imperial Needle Roller Bearing Without Inner Ring 3x3-3/4x1-3/4 inch
$72.37 ex VAT
$72.37 ex VAT
Sale Sold out

Equivalent to: HJ486028 HJ-486028 MR48 MR-48 SJ8517

In stock

Price Break
10+ $48.47
20+ $45.75
30+ $45.21
40+ $44.66
50+ $44.12
75+ $43.57
100+ $40.85
200+ $40.30
250+ $39.76
500+ $39.21
1000+ $38.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads.
Benefits: Economical replacement, needles are retained within machined flange of the outer race.
Brand / Quality:
IKO - High Quality
Inside Diameter:
76.2mm = 3 inch
Outside Diameter:
95.25mm = 3.75 (3-3/4) inch
Width:
44.45mm = 1.75 (1-3/4) inch
Technical
Fw 3 inch
D 3-3/4 inch
C 1-3/4 inch
Dynamic Load Cor 122000 N
Static Load Cr 255000 N
Weight 0.65 kg
