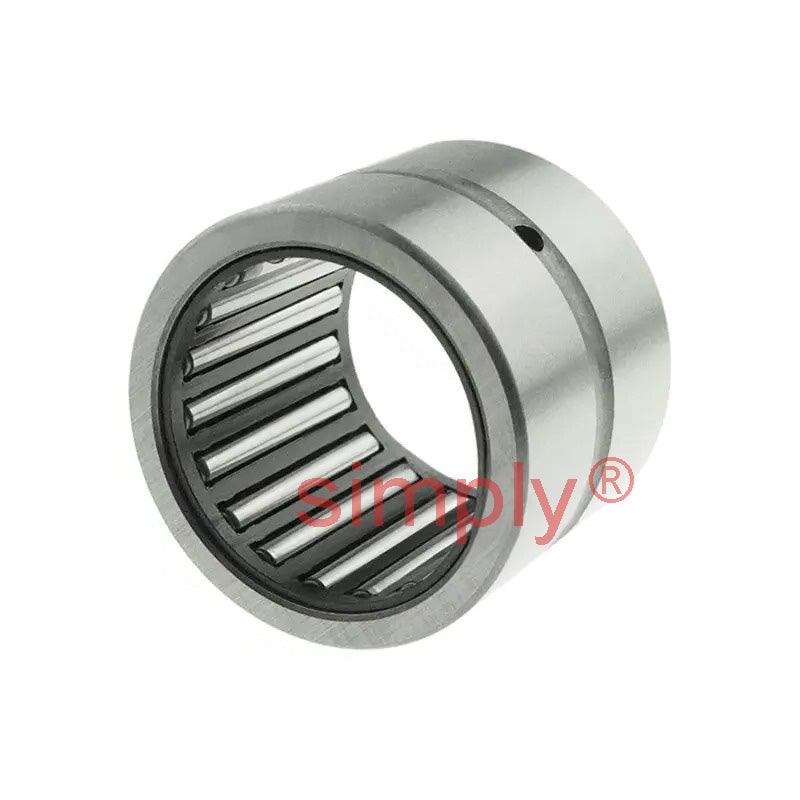

• BR526832 Machined Type Imperial Needle Roller Bearing Without Inner Ring 3-1/4x4-1/4x2 inch
  • IKO
1 2

SKU: BR.526832

BR526832 Machined Type Imperial Needle Roller Bearing Without Inner Ring 3-1/4x4-1/4x2 inch

BR526832 Machined Type Imperial Needle Roller Bearing Without Inner Ring 3-1/4x4-1/4x2 inch
$100.82 ex VAT
$100.82 ex VAT
Sale Sold out

Equivalent to: HJ526832 HJ-526832 ? SJ9568 NCS5232

In stock

Price Break
10+ $67.53
20+ $63.74
30+ $62.98
40+ $62.22
50+ $61.46
75+ $60.70
100+ $56.91
200+ $56.15
250+ $55.39
500+ $54.63
1000+ $53.12

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads.
Benefits: Economical replacement, needles are retained within machined flange of the outer race.
Brand / Quality:
IKO - High Quality
Inside Diameter:
82.55mm = 3.25 (3-1/4) inch
Outside Diameter:
107.95mm = 4.25 (4-1/4) inch
Width:
50.8mm = 2 inch
Technical
Fw 3-1/4 inch
D 4-1/4 inch
C 2 inch
Dynamic Load Cor 154000 N
Static Load Cr 290000 N
Weight 1.14 kg
