SKU: BRF08-00-501-DURB

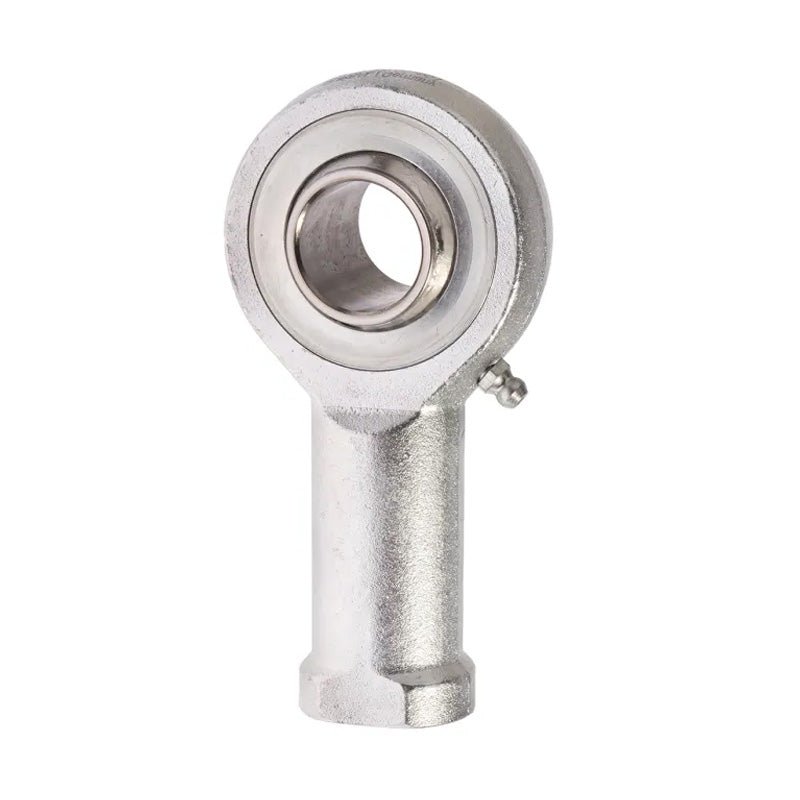

Durbal BRF08-00-501 Right Hand Metric Steel Female Rod End M8 Thread

Name: Durbal BRF08-00-501 Right Hand Metric Steel Female Rod End M8 Thread
Brand: Durbal
SKU: BRF08-00-501-DURB
Price: 76.51 USD
Availability: InStock

$76.51 ex VAT

Sale Sold out

In stock

Price Break

10+ $51.25

19+ $48.37

29+ $47.79

39+ $47.22

49+ $46.64

74+ $46.06

99+ $43.19

199+ $42.61

249+ $42.03

499+ $41.46

999+ $40.31

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M8
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 8mm

Technical

Thread Direction	-501 (Right)
d	8mm
G (Thread)	M8
B	12mm
C1	9mm
h1	36mm
d1	10.4mm
d2	24mm
d3	12.5mm
d4	16mm
l3	16mm
l4	48mm
l5	5mm
l7	12mm
W	14mm
tilt angle &α;	8.5 deg
weight	0.044kg
rotational speed limit n max	1.3 min-1
axial factor	1.8 Y
axial factor	1.89 Y0
basic load rating dyn C	4 kN
basic load rating stat Co	1 kN
radial clearance CN	10-30 µm
