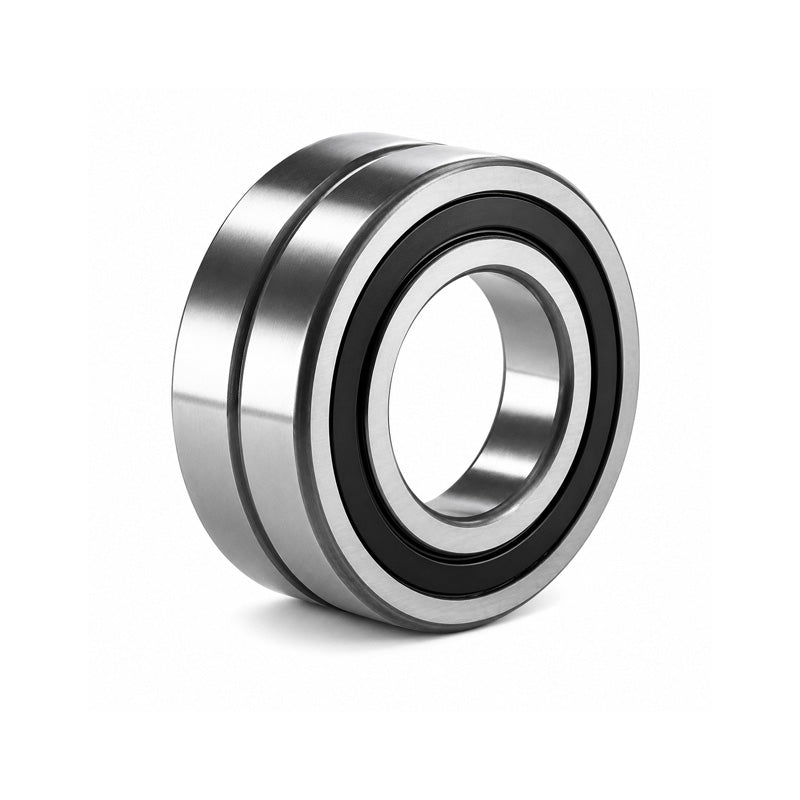

• SKF BS222062CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 30x62x25mm
1 1

SKU: BS2-2206-2CS/VT143-SKF

SKF BS222062CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 30x62x25mm

SKF BS222062CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 30x62x25mm
$110.80 ex VAT
$110.80 ex VAT
Sale Sold out

Equivalent to: BS222062RS/VT143

In stock

Price Break
3+ $74.22
4+ $70.05
9+ $69.22
19+ $68.38
29+ $67.55
39+ $66.71
49+ $62.55
59+ $61.71
249+ $60.88
499+ $60.04
999+ $58.38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Rubber Sealed Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options, rubber sealed
Brand / Quality:
SKF - High Quality
Inside Diameter:
30mm
Outside Diameter:
62mm
Width:
25mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
--- Dimensions
d 30mm
D 62mm
B 25mm
D1 55.7mm
d2 36mm
r1r2 min 1mm
b 3.7mm
K 2mm
da min 35.6mm
da max 36mm
Da max 56.4mm
ra max 1mm
--- Speeds, Loads and Weights
Dynamic load C 64 kN
Static load Co 60 kN
Fatigue load limit Pu 6.4 kN
Limiting speed 2800 rpm
Weight 0.56 kg
--- Factors
Calculation factor e 0.31
Calculation factor Y1 2.2
Calculation factor Y2 3.3
Calculation factor Y0 2
