SKU: BS2-2210-2CSK/VT143-SKF

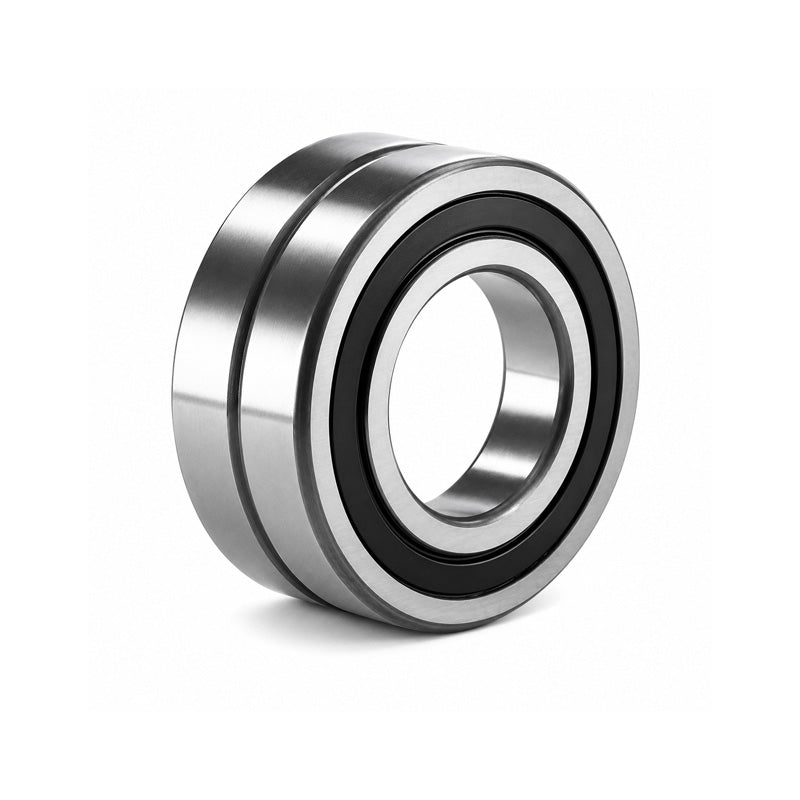

SKF BS222102CSKVT143 Sealed Spherical Roller Bearing with Taper Bore 50x90x28mm

Name: SKF BS222102CSKVT143 Sealed Spherical Roller Bearing with Taper Bore 50x90x28mm
Brand: SKF
SKU: BS2-2210-2CSK/VT143-SKF
Price: 139.25 USD
Availability: InStock

$139.25 ex VAT

Sale Sold out

Equivalent to: BS222102RSK/VT143 22210K-2RS

In stock

Price Break

3+ $93.27

4+ $88.03

9+ $86.98

19+ $85.93

29+ $84.89

39+ $83.84

49+ $78.60

59+ $77.55

249+ $76.50

499+ $75.45

999+ $73.36

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Rubber Sealed Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options, rubber sealed

Brand / Quality:: SKF - High Quality
Inside Diameter:: 50mm
Outside Diameter:: 90mm
Width:: 28mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

---	Dimensions
d	50mm
D	90mm
B	28mm
D1	82.1mm
d2	58mm
r1r2 min	1.1mm
b	5.5mm
K	3mm
da min	57mm
da max	58mm
Da max	83mm
ra max	1mm
---	Speeds, Loads and Weights
Dynamic load C	104 kN
Static load Co	108 kN
Fatigue load limit Pu	11.8 kN
Limiting speed	1900 rpm
Weight	0.7 kg
---	Factors
Calculation factor e	0.24
Calculation factor Y1	2.8
Calculation factor Y2	4.2
Calculation factor Y0	2.8
---	Matching Adaptor Sleeves
Sleeve No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H310E+sleeve>H310E</a>
