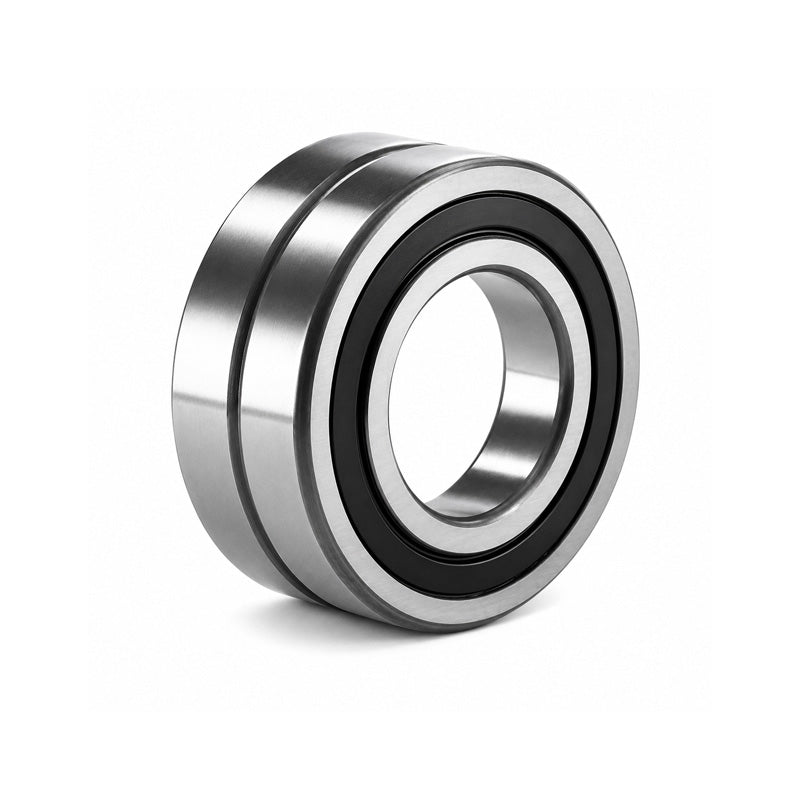

• SKF BS222122CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 60x110x34mm
1 1

SKU: BS2-2212-2CS/VT143-SKF

SKF BS222122CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 60x110x34mm

SKF BS222122CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 60x110x34mm
$187.86 ex VAT
$187.86 ex VAT
Sale Sold out

Equivalent to: BS222122RS/VT143

In stock

Price Break
3+ $125.84
4+ $118.77
9+ $117.35
19+ $115.94
29+ $114.53
39+ $113.11
49+ $106.04
59+ $104.63
249+ $103.21
499+ $101.80
999+ $98.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Rubber Sealed Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options, rubber sealed
Brand / Quality:
SKF - High Quality
Inside Diameter:
60mm
Outside Diameter:
110mm
Width:
34mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
--- Dimensions
d 60mm
D 110mm
B 34mm
D1 102mm
d2 69mm
r1r2 min 1.5mm
b 5.5mm
K 3mm
da min 69mm
da max 69mm
Da max 101mm
ra max 1.5mm
--- Speeds, Loads and Weights
Dynamic load C 156 kN
Static load Co 166 kN
Fatigue load limit Pu 18.6 kN
Limiting speed 1600 rpm
Weight 1.3 kg
--- Factors
Calculation factor e 0.24
Calculation factor Y1 2.8
Calculation factor Y2 4.2
Calculation factor Y0 2.8
