SKU: BS2-2214-2CSK/VT143-SKF

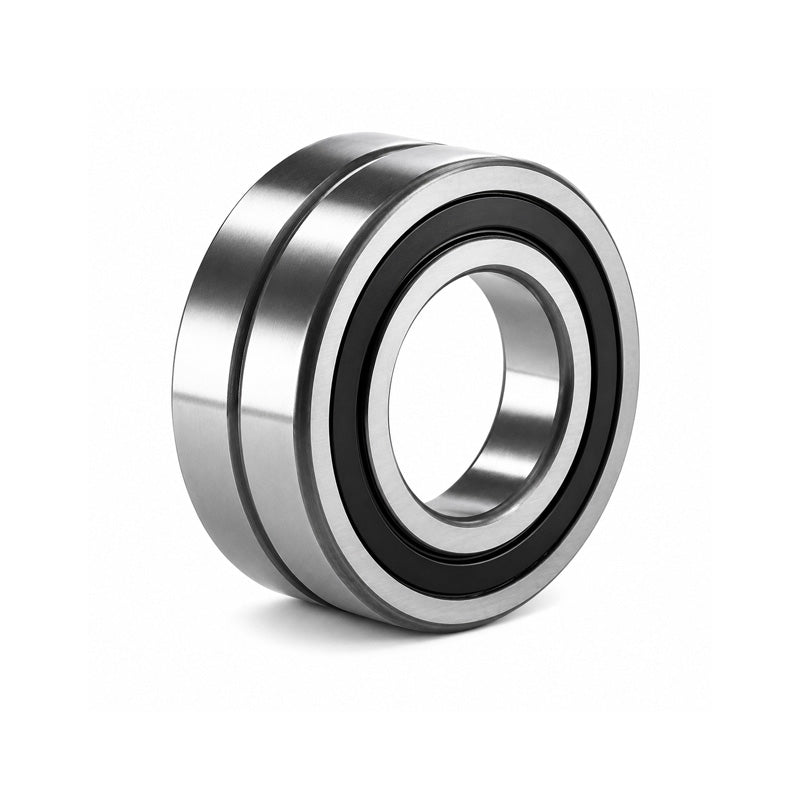

SKF BS222142CSKVT143 Sealed Spherical Roller Bearing with Taper Bore 70x125x38mm

Name: SKF BS222142CSKVT143 Sealed Spherical Roller Bearing with Taper Bore 70x125x38mm
Brand: SKF
SKU: BS2-2214-2CSK/VT143-SKF
Price: 256.24 USD
Availability: InStock

$256.24 ex VAT

Sale Sold out

Equivalent to: BS222142RSK/VT143 22214K-2RS

In stock

Price Break

3+ $171.64

4+ $161.99

9+ $160.06

19+ $158.14

29+ $156.21

39+ $154.28

49+ $144.64

59+ $142.71

249+ $140.78

499+ $138.85

999+ $134.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Rubber Sealed Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options, rubber sealed

Brand / Quality:: SKF - High Quality
Inside Diameter:: 70mm
Outside Diameter:: 125mm
Width:: 38mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

---	Dimensions
d	70mm
D	125mm
B	38mm
D1	115mm
d2	80mm
r1r2 min	1.5mm
b	5.5mm
K	3mm
da min	79mm
da max	80mm
Da max	116mm
ra max	1.5mm
---	Speeds, Loads and Weights
Dynamic load C	208 kN
Static load Co	228 kN
Fatigue load limit Pu	25.5 kN
Limiting speed	1400 rpm
Weight	1.8 kg
---	Factors
Calculation factor e	0.23
Calculation factor Y1	2.9
Calculation factor Y2	4.4
Calculation factor Y0	2.8
---	Matching Adaptor Sleeves
Sleeve No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H314E+sleeve>H314E</a>
