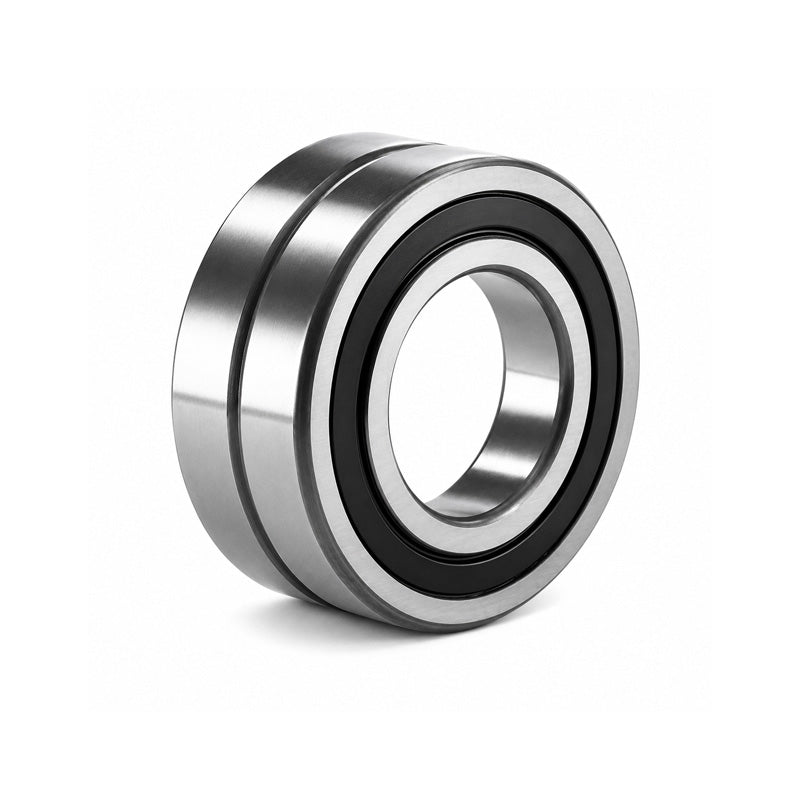

• SKF BS222162CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 80x140x40mm
1 1

SKU: BS2-2216-2CS/VT143-SKF

SKF BS222162CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 80x140x40mm

SKF BS222162CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 80x140x40mm
$283.37 ex VAT
$283.37 ex VAT
Sale Sold out

Equivalent to: BS222162RS/VT143

In stock

Price Break
3+ $189.81
4+ $179.15
9+ $177.02
19+ $174.88
29+ $172.75
39+ $170.62
49+ $159.95
59+ $157.82
249+ $155.69
499+ $153.56
999+ $149.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Rubber Sealed Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options, rubber sealed
Brand / Quality:
SKF - High Quality
Inside Diameter:
80mm
Outside Diameter:
140mm
Width:
40mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
--- Dimensions
d 80mm
D 140mm
B 40mm
D1 128mm
d2 91.5mm
r1r2 min 2mm
b 5.5mm
K 3mm
da min 91mm
da max 91.5mm
Da max 129mm
ra max 2mm
--- Speeds, Loads and Weights
Dynamic load C 236 kN
Static load Co 270 kN
Fatigue load limit Pu 29 kN
Limiting speed 1200 rpm
Weight 2.4 kg
--- Factors
Calculation factor e 0.22
Calculation factor Y1 3
Calculation factor Y2 4.6
Calculation factor Y0 2.8
