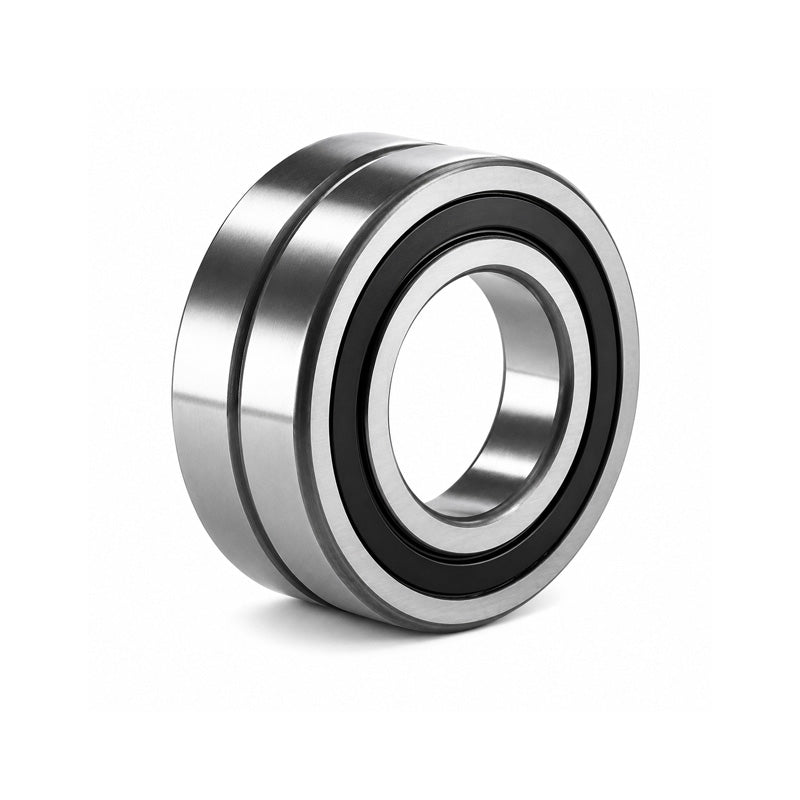

SKF BS222172CSKVT143 Sealed Spherical Roller Bearing with Taper Bore 85x150x44mm

Name: SKF BS222172CSKVT143 Sealed Spherical Roller Bearing with Taper Bore 85x150x44mm
Brand: SKF
SKU: BS2-2217-2CSK/VT143-SKF
Price: 318.25 USD
Availability: InStock

$318.25 ex VAT

Sale Sold out

Equivalent to: BS222172RSK/VT143 22217K-2RS

In stock

Price Break

3+ $213.17

4+ $201.19

9+ $198.80

19+ $196.40

29+ $194.01

39+ $191.61

49+ $179.64

59+ $177.24

249+ $174.85

499+ $172.45

999+ $167.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Rubber Sealed Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options, rubber sealed

Brand / Quality:: SKF - High Quality
Inside Diameter:: 85mm
Outside Diameter:: 150mm
Width:: 44mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

---	Dimensions
d	85mm
D	150mm
B	44mm
D1	138mm
d2	98mm
r1r2 min	2mm
b	5.5mm
K	3mm
da min	96mm
da max	98mm
Da max	139mm
ra max	2mm
---	Speeds, Loads and Weights
Dynamic load C	285 kN
Static load Co	325 kN
Fatigue load limit Pu	34.5 kN
Limiting speed	1100 rpm
Weight	3 kg
---	Factors
Calculation factor e	0.22
Calculation factor Y1	3
Calculation factor Y2	4.6
Calculation factor Y0	2.8
---	Matching Adaptor Sleeves
Sleeve No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H317E+sleeve>H317E</a>
