SKU: BS2-2218-2CSK/VT143-SKF

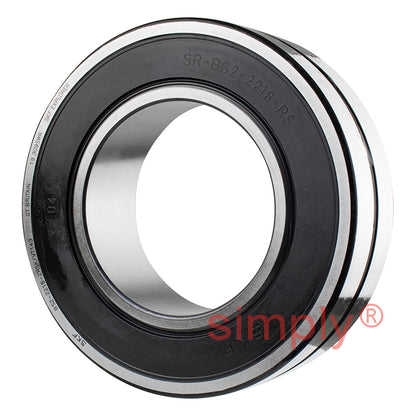

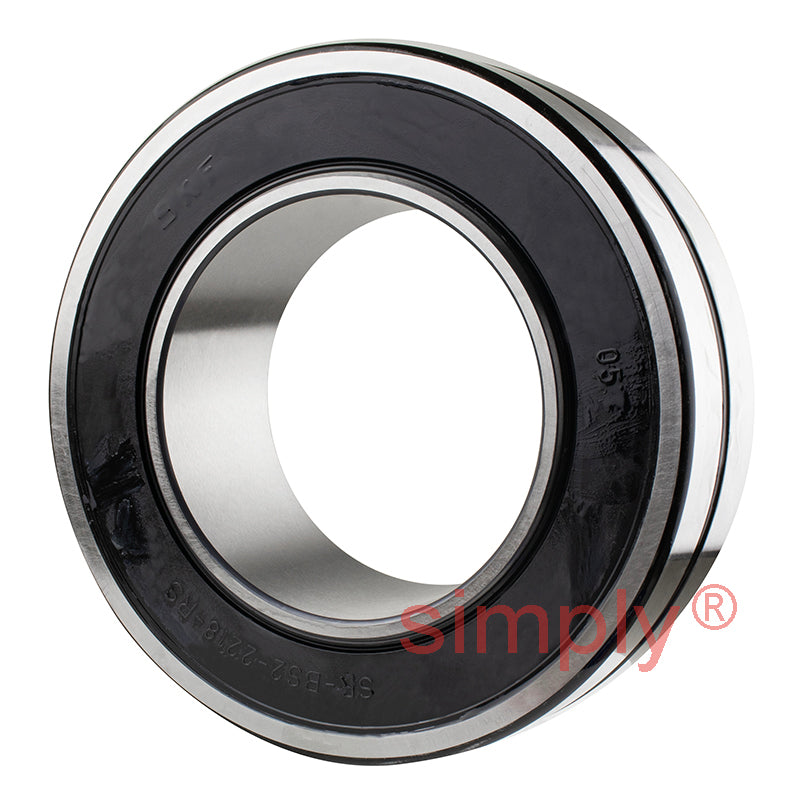

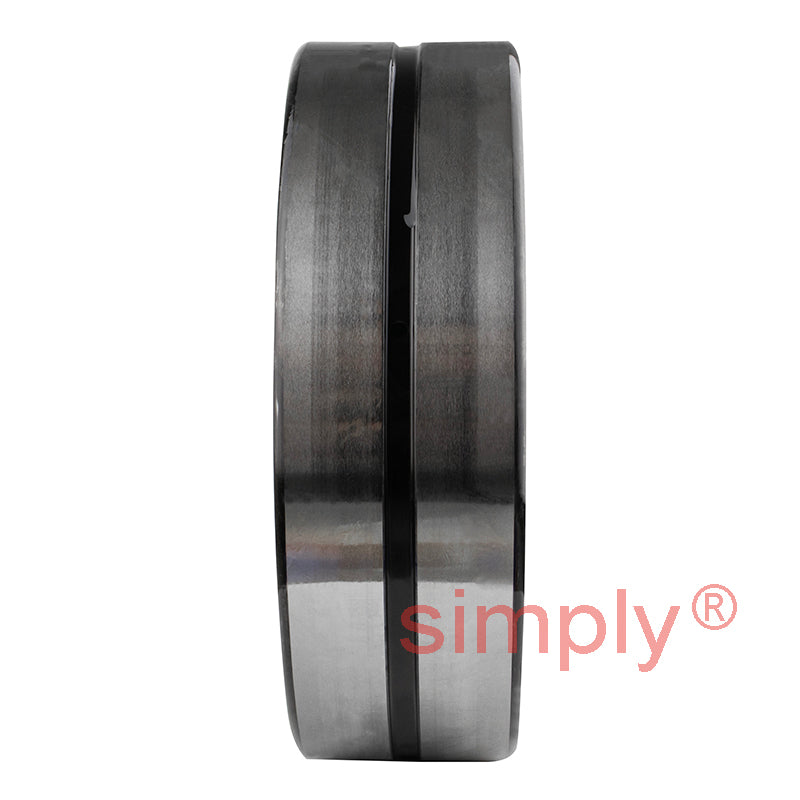

SKF BS222182CSKVT143 Sealed Spherical Roller Bearing with Taper Bore 90x160x48mm

SKF BS222182CSKVT143 Sealed Spherical Roller Bearing with Taper Bore 90x160x48mm
$350.83 ex VAT
$350.83 ex VAT
Sale Sold out

Equivalent to: BS222182RSK/VT143 22218K-2RS

In stock

Price Break
3+ $235.00
4+ $221.80
9+ $219.16
19+ $216.51
29+ $213.87
39+ $211.23
49+ $198.03
59+ $195.39
249+ $192.75
499+ $190.11
999+ $184.83

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Rubber Sealed Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options, rubber sealed
Brand / Quality:
SKF - High Quality
Inside Diameter:
90mm
Outside Diameter:
160mm
Width:
48mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
--- Dimensions
d 90mm
D 160mm
B 48mm
D1 148mm
d2 102mm
r1r2 min 2mm
b 5.5mm
K 3mm
da min 101mm
da max 102mm
Da max 149mm
ra max 2mm
--- Speeds, Loads and Weights
Dynamic load C 325 kN
Static load Co 375 kN
Fatigue load limit Pu 39 kN
Limiting speed 1000 rpm
Weight 3.7 kg
--- Factors
Calculation factor e 0.24
Calculation factor Y1 2.8
Calculation factor Y2 4.2
Calculation factor Y0 2.8
