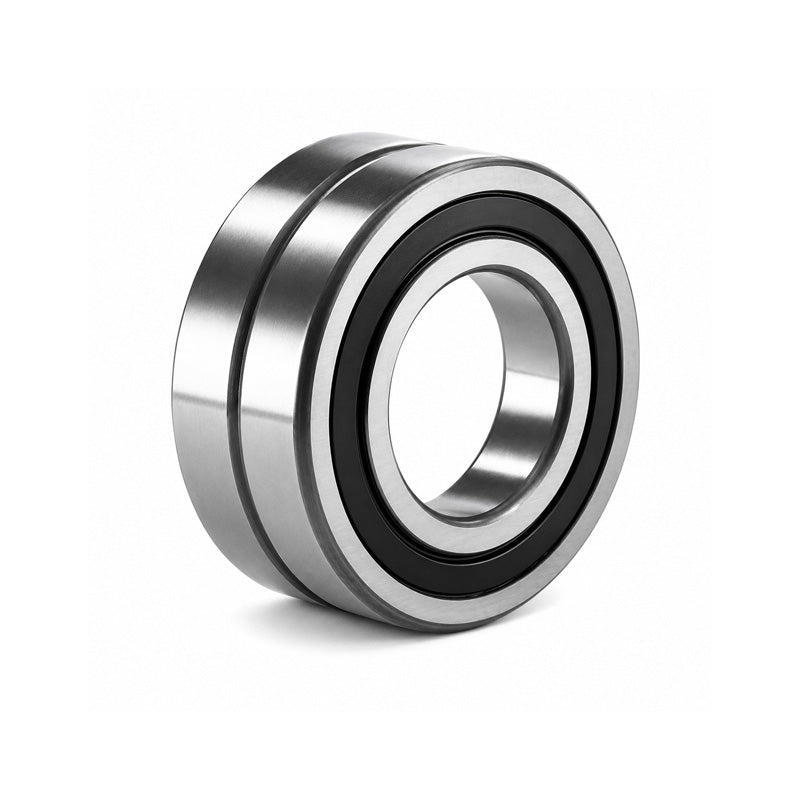

• SKF BS222202CS5VT143 Sealed Spherical Roller Bearing with Cylindrical Bore 100x180x55mm
1 1

SKU: BS2-2220-2CS5/VT143-SKF

SKF BS222202CS5VT143 Sealed Spherical Roller Bearing with Cylindrical Bore 100x180x55mm

SKF BS222202CS5VT143 Sealed Spherical Roller Bearing with Cylindrical Bore 100x180x55mm
$469.80 ex VAT
$469.80 ex VAT
Sale Sold out

Equivalent to: BS222202RS5/VT143

In stock

Price Break
3+ $314.69
4+ $297.01
9+ $293.47
19+ $289.94
29+ $286.40
39+ $282.87
49+ $265.19
59+ $261.65
249+ $258.11
499+ $254.58
999+ $247.51

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Rubber Sealed Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options, rubber sealed
Brand / Quality:
SKF - High Quality
Inside Diameter:
100mm
Outside Diameter:
180mm
Width:
55mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
--- Dimensions
d 100mm
D 180mm
B 55mm
D1 162mm
d2 114mm
r1r2 min 2.1mm
b 8.3mm
K 4.5mm
da min 112mm
da max 114mm
Da max 168mm
ra max 2mm
--- Speeds, Loads and Weights
Dynamic load C 425 kN
Static load Co 490 kN
Fatigue load limit Pu 49 kN
Limiting speed 900 rpm
Weight 5.5 kg
--- Factors
Calculation factor e 0.24
Calculation factor Y1 2.8
Calculation factor Y2 4.2
Calculation factor Y0 2.8
