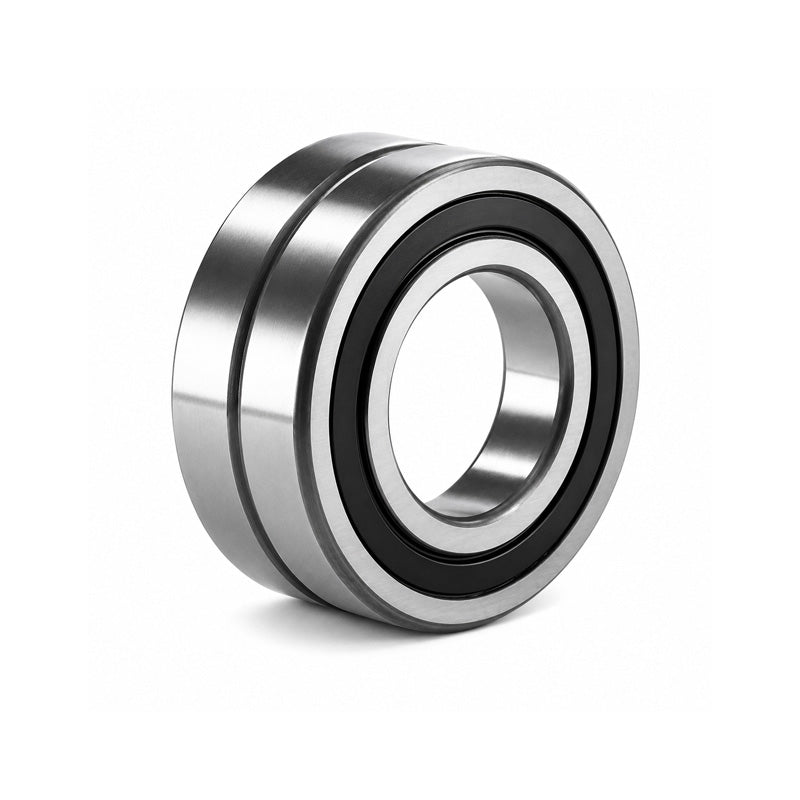

• SKF BS223112CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 55x120x49mm
1 1

SKU: BS2-2311-2CS/VT143-SKF

SKF BS223112CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 55x120x49mm

SKF BS223112CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 55x120x49mm
$300.15 ex VAT
$300.15 ex VAT
Sale Sold out

Equivalent to: BS223112RS/VT143

In stock

Price Break
3+ $201.05
4+ $189.76
9+ $187.50
19+ $185.24
29+ $182.98
39+ $180.72
49+ $169.42
59+ $167.17
249+ $164.91
499+ $162.65
999+ $158.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Rubber Sealed Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options, rubber sealed
Brand / Quality:
SKF - High Quality
Inside Diameter:
55mm
Outside Diameter:
120mm
Width:
49mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
--- Dimensions
d 55mm
D 120mm
B 49mm
D1 109mm
d2 67mm
r1r2 min 2mm
b 5.5mm
K 3mm
da min 66mm
da max 67mm
Da max 109mm
ra max 2mm
--- Speeds, Loads and Weights
Dynamic load C 270 kN
Static load Co 280 kN
Fatigue load limit Pu 30 kN
Limiting speed 1400 rpm
Weight 2.8 kg
--- Factors
Calculation factor e 0.35
Calculation factor Y1 1.9
Calculation factor Y2 2.9
Calculation factor Y0 1.8
