SKU: BS2-2315-2CS/VT143-SKF

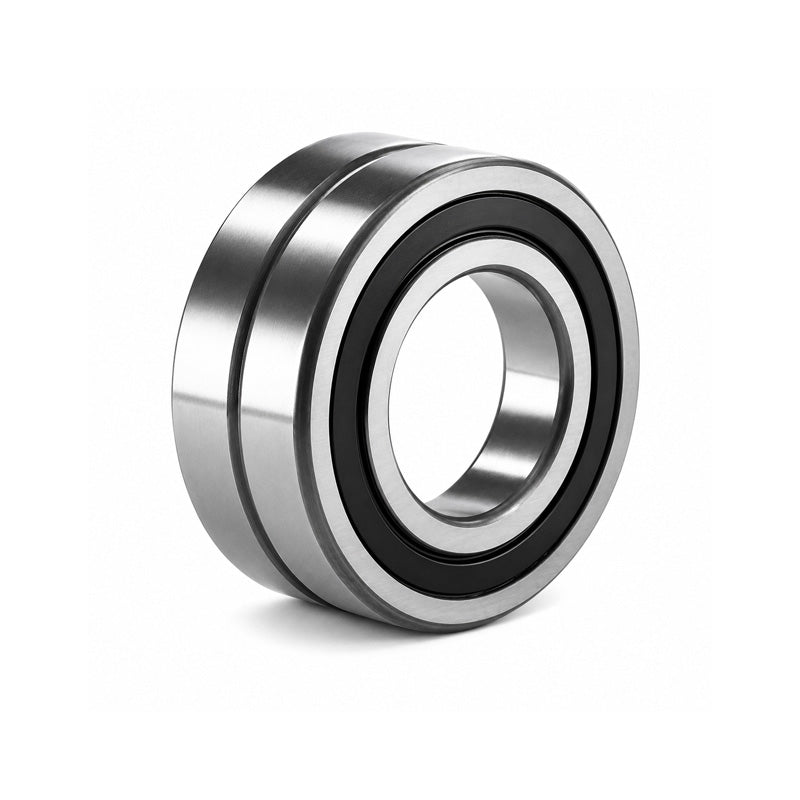

SKF BS223152CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 75x160x64mm - Allow 2-3 Days

Name: SKF BS223152CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 75x160x64mm - Allow 2-3 Days
Brand: SKF
SKU: BS2-2315-2CS/VT143-SKF
Price: 588.99 USD
Availability: InStock

$588.99 ex VAT

Sale Sold out

Equivalent to: BS223152RS/VT143

In stock

Price Break

3+ $438.79

4+ $421.06

9+ $412.19

19+ $398.90

29+ $390.03

39+ $367.87

49+ $310.25

59+ $0.00

249+ $0.00

499+ $0.00

999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Rubber Sealed Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options, rubber sealed

Brand / Quality:: SKF - High Quality
Inside Diameter:: 75mm
Outside Diameter:: 160mm
Width:: 64mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

---	Dimensions
d	75mm
D	160mm
B	64mm
D1	144mm
d2	88mm
r1r2 min	2.1mm
b	8.3mm
K	4.5mm
da min	87mm
da max	88mm
Da max	148mm
ra max	2mm
---	Speeds, Loads and Weights
Dynamic load C	440 kN
Static load Co	475 kN
Fatigue load limit Pu	48 kN
Limiting speed	950 rpm
Weight	6.5 kg
---	Factors
Calculation factor e	0.35
Calculation factor Y1	1.9
Calculation factor Y2	2.9
Calculation factor Y0	1.8
