BX66 Major Brand BX-Section Cogged V-Belt

SKU: BX.66.CVBELT.MB

BX66 Major Brand BX-Section Cogged V-Belt

$23.24 ex VAT
$23.24
ex VAT
In stock

Quantity Price Breaks

10 $20.68
19 $19.52
29 $19.29
39 $19.06
49 $18.82
74 $18.59
99 $17.43
199 $17.20
249 $16.97
499 $16.73
999 $16.27
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
BX66 Major Brand BX-Section Cogged V-Belt
SKU: BX.66.CVBELT.MB

BX66 Major Brand BX-Section Cogged V-Belt

$23.24 ex VAT
$23.24
ex VAT

Description

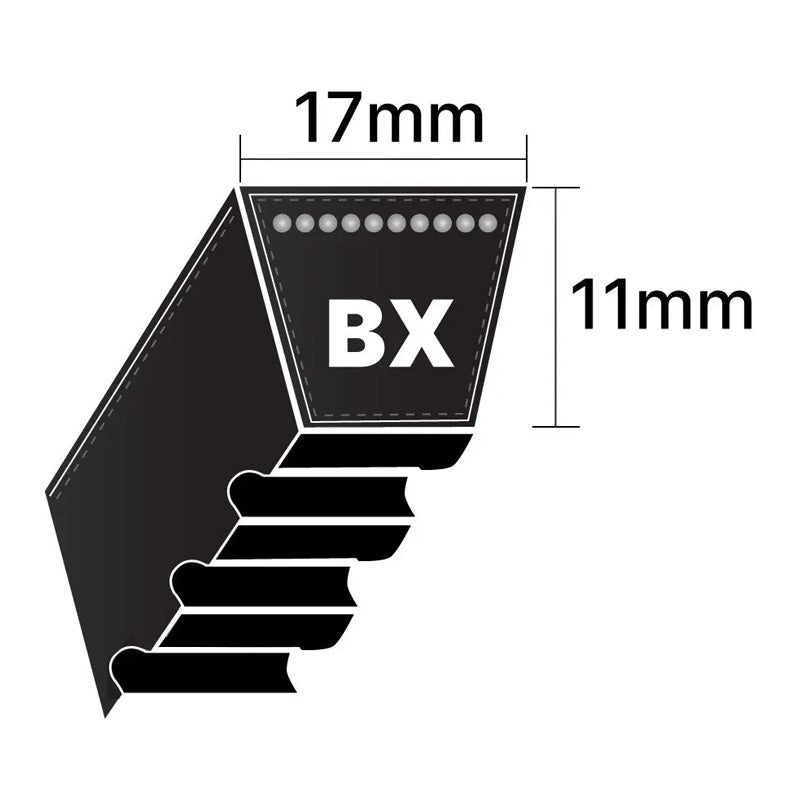

BX Section Cogged Type V Belts: Major Brand longer life cogged 17x11mm (21/32x7/16 inch) belts, cogged belts offer increased air flow which can lead to cooler running. As cogged belts aren't wrapped the cross sectional area that would normally be occupied by the cover is used for greater load carrying cord. Cogged belts tend to be more flexible and can be operated with smaller sheaves.
Benefits: Universal cogged profile to fit ISO 4183/4184 pulleys, Low stretch polyester tensile member, Oil, ozone and abrasion resistant, Temperature resistance: -20deg C to +70deg C, Static conductive to ISO 1813
Note: Matched Pairs: All V Belts conform to DIN 2215 (For Classic V Belts Z, A, B, C, D, etc) and DIN 7753 (For Wedge Type Belts SPZ, SPA, SPB etc) and ISO 4184 and as such will match taking into account dimensional tolerances. If you require belts from the same batch, please contact our Sales Support Team who will gladly assist you further.

Technical

Inside Length = 66 inch = 1676mm
Outside Length = 68.75 inch = 1746mm
Datum Length = 67.69 inch = 1719mm
