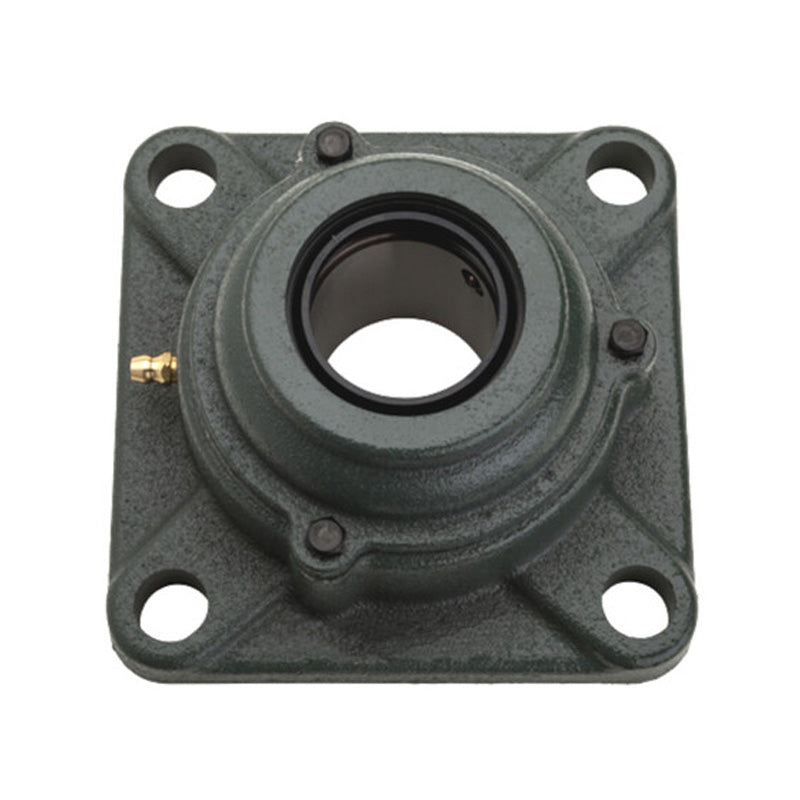

• NTN C-UCF209D1 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
1 1

SKU: C-UCF209D1-NTN

NTN C-UCF209D1 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days

NTN C-UCF209D1 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
$88.34 ex VAT
$88.34 ex VAT
Sale Sold out

In stock

Price Break
3+ $65.82
4+ $63.16
9+ $61.83
19+ $59.83
49+ $58.50
99+ $55.18
499+ $46.54
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
45mm
Style:
UCF
Bolt Hole Centres:
105mm
Technical
--- Dimensions
Shaft diameter 45mm
L 137mm
J 105mm
A<sub>2</sub> 22mm
A<sub>1</sub> 16mm
A 38mm
N 16mm
B 49.2mm
S 19mm
A<sub>5</sub> 70mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 36 kN
Static load C<sub>0r</sub> 20.4 kN
Fatigue load limit C<sub>u</sub> 1.6 kN
--- Unit information
Mass 2.6 kg
