SKU: C-UCF311D1-NTN

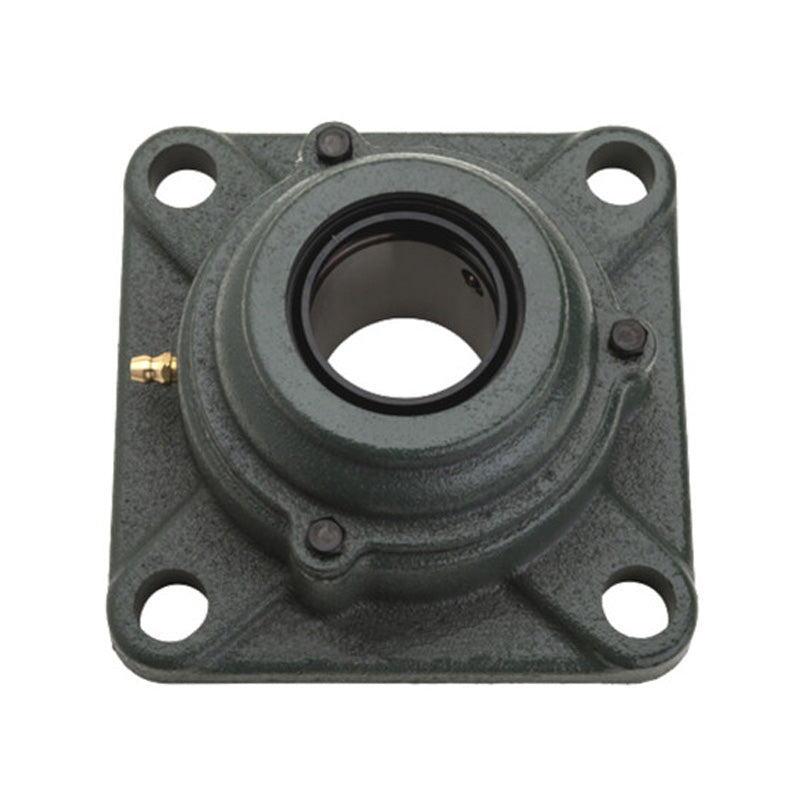

NTN C-UCF311D1 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days

NTN C-UCF311D1 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
$294.52 ex VAT
$294.52 ex VAT
Sale Sold out

In stock

Price Break
3+ $219.41
4+ $210.55
9+ $206.12
19+ $199.47
49+ $195.03
99+ $183.95
499+ $155.14
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
55mm
Style:
UCF
Bolt Hole Centres:
140mm
Technical
--- Dimensions
Shaft diameter 55mm
L 185mm
J 140mm
A<sub>2</sub> 30mm
A<sub>1</sub> 20mm
A 52mm
N 23mm
B 66mm
S 25mm
A<sub>5</sub> 92mm
Fixing bolt M20
--- Load rating
Dynamic load C<sub>r</sub> 79.5 kN
Static load C<sub>0r</sub> 45 kN
Fatigue load limit C<sub>u</sub> 3.5 kN
--- Unit information
Mass 6.7 kg
