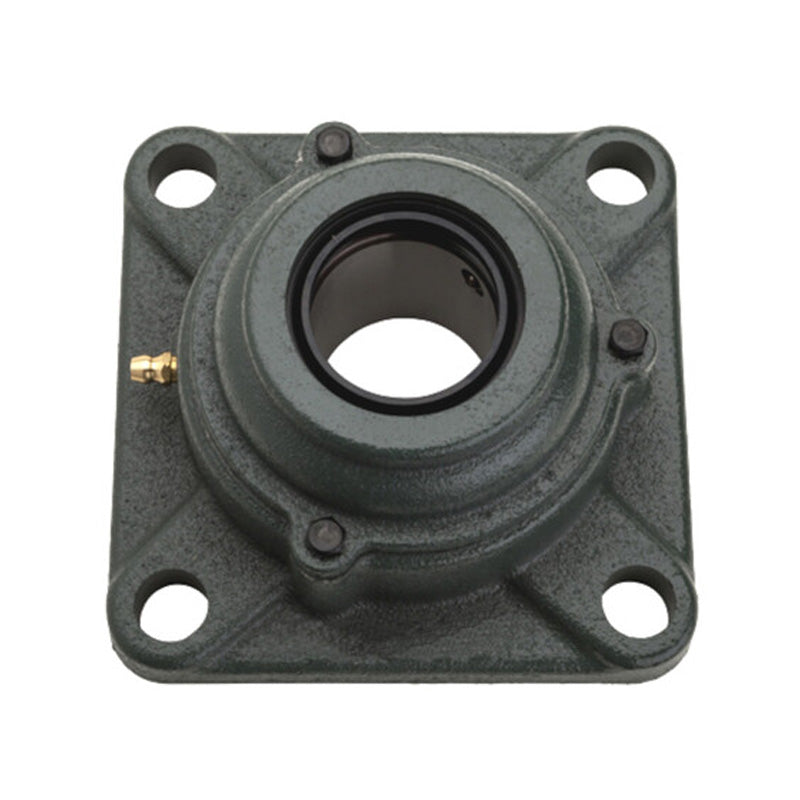

• NTN C-UCF314D1 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
1 1

SKU: C-UCF314D1-NTN

NTN C-UCF314D1 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days

NTN C-UCF314D1 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
$353.51 ex VAT
$353.51 ex VAT
Sale Sold out

In stock

Price Break
3+ $263.36
4+ $252.72
9+ $247.40
19+ $239.42
49+ $234.10
99+ $220.80
499+ $186.21
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
70mm
Style:
UCF
Bolt Hole Centres:
178mm
Technical
--- Dimensions
Shaft diameter 70mm
L 226mm
J 178mm
A<sub>2</sub> 36mm
A<sub>1</sub> 25mm
A 61mm
N 25mm
B 78mm
S 33mm
A<sub>5</sub> 106mm
Fixing bolt M22
--- Load rating
Dynamic load C<sub>r</sub> 115 kN
Static load C<sub>0r</sub> 68 kN
Fatigue load limit C<sub>u</sub> 5.1 kN
--- Unit information
Mass 11 kg
