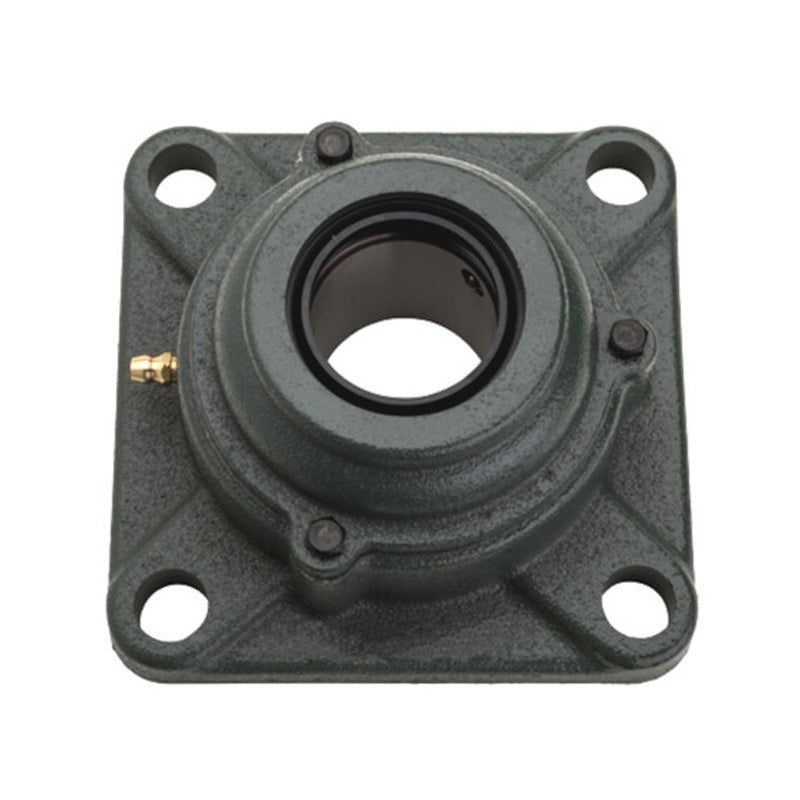

• NTN C-UCF315D1 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
1 1

SKU: C-UCF315D1-NTN

NTN C-UCF315D1 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days

NTN C-UCF315D1 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
$412.44 ex VAT
$412.44 ex VAT
Sale Sold out

In stock

Price Break
3+ $307.26
4+ $294.84
9+ $288.63
19+ $279.32
49+ $273.12
99+ $257.60
499+ $217.25
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
75mm
Style:
UCF
Bolt Hole Centres:
184mm
Technical
--- Dimensions
Shaft diameter 75mm
L 236mm
J 184mm
A<sub>2</sub> 39mm
A<sub>1</sub> 25mm
A 66mm
N 25mm
B 82mm
S 32mm
A<sub>5</sub> 114mm
Fixing bolt M22
--- Load rating
Dynamic load C<sub>r</sub> 126 kN
Static load C<sub>0r</sub> 77 kN
Fatigue load limit C<sub>u</sub> 5.55 kN
--- Unit information
Mass 13 kg
