SKU: C-UCFC208D1-NTN

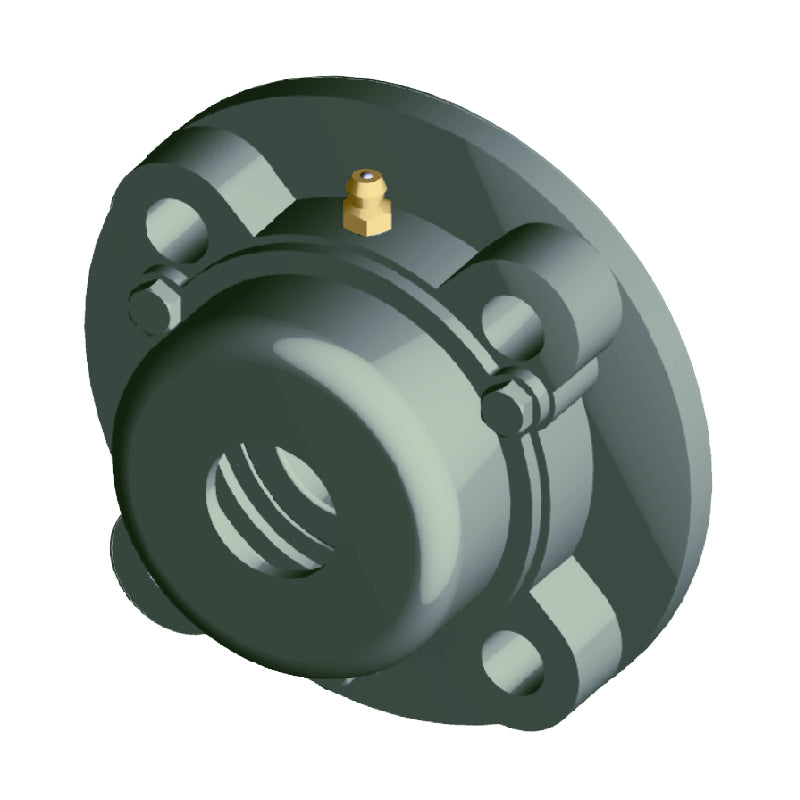

NTN C-UCFC208D1 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCFC208D1 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
$71.23
ex VAT
Regular price
Sale price
$71.23
ex VAT
In stock
Price Break
3+
$47.71
4+
$45.03
9+
$44.50
19+
$43.96
49+
$43.42
99+
$42.89
499+
$40.21
999+
$39.67
1999+
$39.14
2999+
$38.60
4999+
$37.53
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 84.9mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| L | 145mm |
| J | 120mm |
| (J<sub>1</sub>) | 84.9mm |
| A<sub>2</sub> | 11mm |
| N | 14mm |
| A<sub>3</sub> | 10mm |
| A<sub>1C</sub> | 27.5mm |
| A | 36mm |
| H<sub>3</sub> | 100mm |
| B | 49.2mm |
| S | 19mm |
| F (Min.) | mm |
| A<sub>5</sub> | 66mm |
| Fixing bolt | M12 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 32.5 kN |
| Static load C<sub>0r</sub> | 17.8 kN |
| Fatigue load limit C<sub>u</sub> | 1.24 kN |
| --- | Unit information |
| Mass | 2.4 kg |
