SKU: C-UCFC210D1-NTN

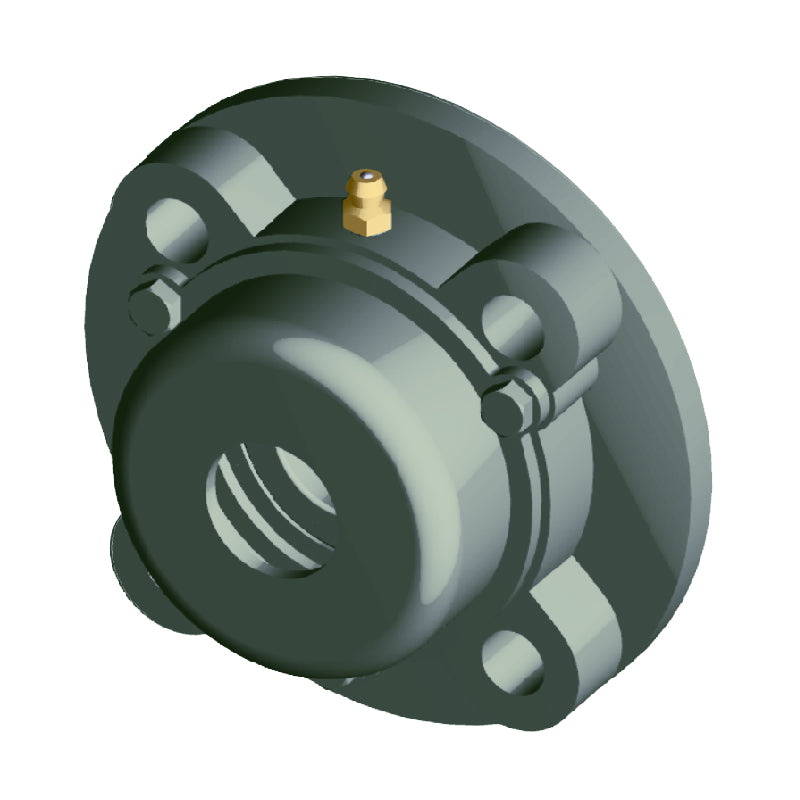

NTN C-UCFC210D1 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCFC210D1 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
$82.23
ex VAT
Regular price
Sale price
$82.23
ex VAT
In stock
Price Break
3+
$55.08
4+
$51.99
9+
$51.37
19+
$50.75
49+
$50.13
99+
$49.51
499+
$46.42
999+
$45.80
1999+
$45.18
2999+
$44.56
4999+
$43.32
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 97.6mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| L | 165mm |
| J | 138mm |
| (J<sub>1</sub>) | 97.6mm |
| A<sub>2</sub> | 10mm |
| N | 16mm |
| A<sub>3</sub> | 12mm |
| A<sub>1C</sub> | 29mm |
| A | 40mm |
| H<sub>3</sub> | 110mm |
| B | 51.6mm |
| S | 19mm |
| F (Min.) | mm |
| A<sub>5</sub> | 72mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 39 kN |
| Static load C<sub>0r</sub> | 23.2 kN |
| Fatigue load limit C<sub>u</sub> | 1.82 kN |
| --- | Unit information |
| Mass | 3.6 kg |
