SKU: C-UCFC211D1-NTN

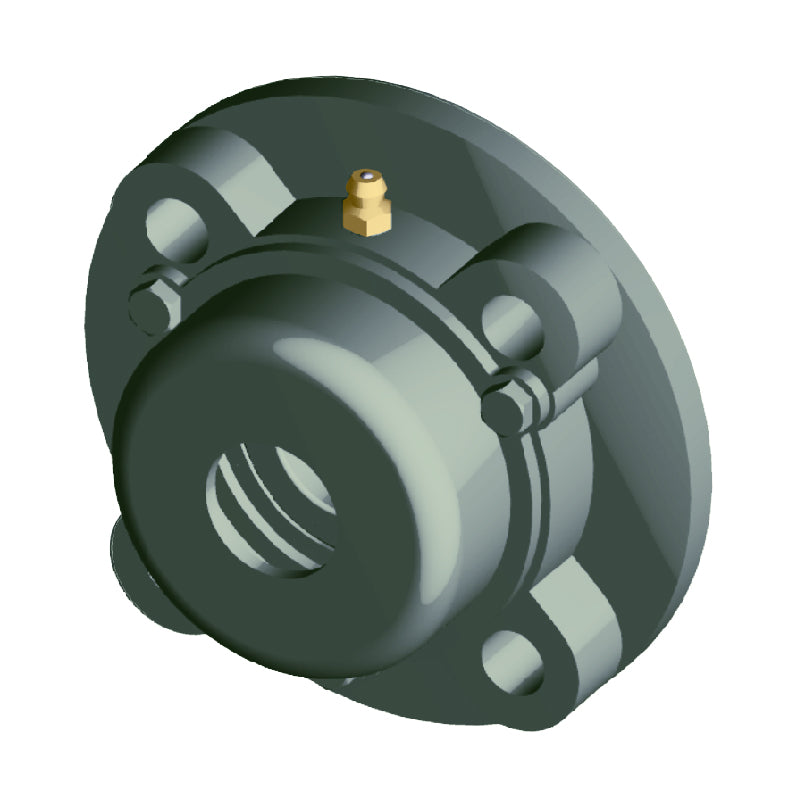

NTN C-UCFC211D1 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCFC211D1 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
$132.58
ex VAT
Regular price
Sale price
$132.58
ex VAT
In stock
Price Break
3+
$98.77
4+
$94.78
9+
$92.79
19+
$89.79
49+
$87.80
99+
$82.81
499+
$69.84
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 106.1mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 55mm |
| L | 185mm |
| J | 150mm |
| (J<sub>1</sub>) | 106.1mm |
| A<sub>2</sub> | 13mm |
| N | 19mm |
| A<sub>3</sub> | 12mm |
| A<sub>1C</sub> | 32.5mm |
| A | 43mm |
| H<sub>3</sub> | 125mm |
| B | 55.6mm |
| S | 22.2mm |
| F (Min.) | mm |
| A<sub>5</sub> | 75mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 48 kN |
| Static load C<sub>0r</sub> | 29.2 kN |
| Fatigue load limit C<sub>u</sub> | 2.29 kN |
| --- | Unit information |
| Mass | 4.8 kg |
