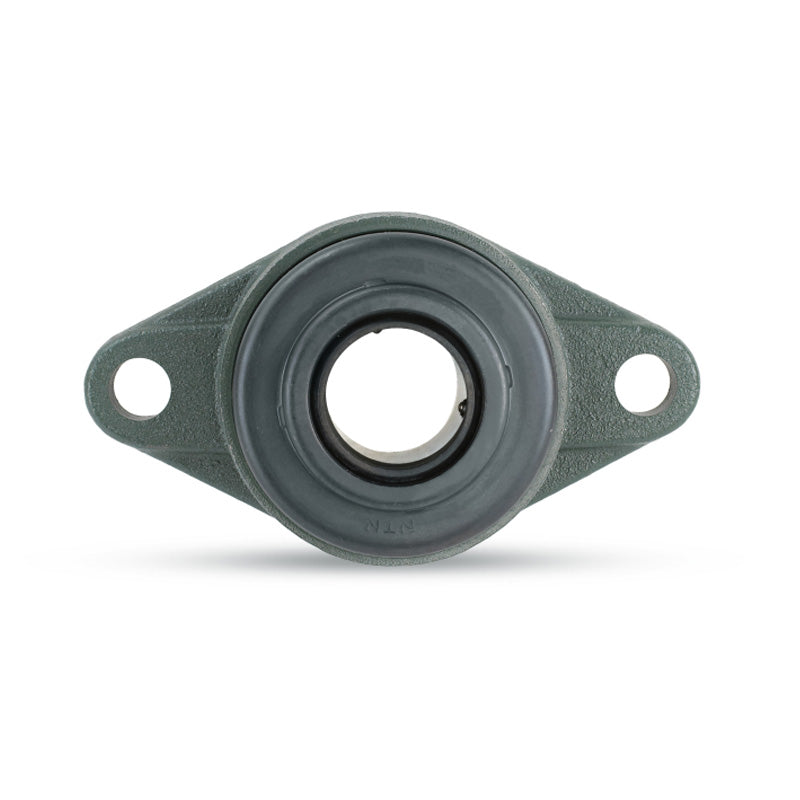

• NTN C-UCFL214D1 Metric Two Bolt Oval Cast Iron Flange Housing with 70mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
1 1

SKU: C-UCFL214D1-NTN

NTN C-UCFL214D1 Metric Two Bolt Oval Cast Iron Flange Housing with 70mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days

NTN C-UCFL214D1 Metric Two Bolt Oval Cast Iron Flange Housing with 70mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
$265.03 ex VAT
$265.03 ex VAT
Sale Sold out

In stock

Price Break
3+ $197.45
4+ $189.47
9+ $185.48
19+ $179.50
49+ $175.51
99+ $165.54
499+ $139.61
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
70mm
Style:
UCFL
Bolt Hole Centres:
216mm
Technical
--- Dimensions
Shaft diameter 70mm
H 265mm
J 216mm
A<sub>2</sub> 31mm
A<sub>1</sub> 22mm
A 54mm
N 23mm
L 160mm
B 74.6mm
S 30.2mm
A<sub>5</sub> 98mm
L<sub>1</sub> 164mm
L<sub>2</sub> 80mm
Fixing bolt M20
--- Load rating
Dynamic load C<sub>r</sub> 69 kN
Static load C<sub>0r</sub> 44 kN
Fatigue load limit C<sub>u</sub> 3.45 kN
--- Unit information
Mass 7.7 kg
