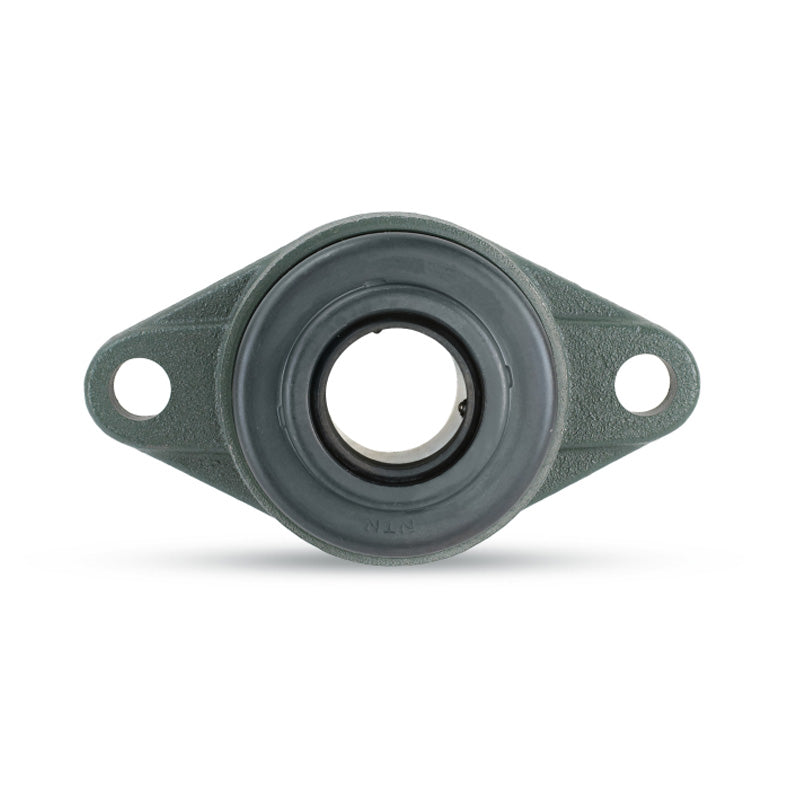

• NTN C-UCFL215D1 Metric Two Bolt Oval Cast Iron Flange Housing with 75mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
1 1

SKU: C-UCFL215D1-NTN

NTN C-UCFL215D1 Metric Two Bolt Oval Cast Iron Flange Housing with 75mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days

NTN C-UCFL215D1 Metric Two Bolt Oval Cast Iron Flange Housing with 75mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
$294.60 ex VAT
$294.60 ex VAT
Sale Sold out

In stock

Price Break
3+ $219.47
4+ $210.61
9+ $206.17
19+ $199.52
49+ $195.09
99+ $184.00
499+ $155.18
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
75mm
Style:
UCFL
Bolt Hole Centres:
225mm
Technical
--- Dimensions
Shaft diameter 75mm
H 275mm
J 225mm
A<sub>2</sub> 34mm
A<sub>1</sub> 22mm
A 56mm
N 23mm
L 165mm
B 77.8mm
S 33.3mm
A<sub>5</sub> 102mm
L<sub>1</sub> 169mm
L<sub>2</sub> 82mm
Fixing bolt M20
--- Load rating
Dynamic load C<sub>r</sub> 73.5 kN
Static load C<sub>0r</sub> 49.5 kN
Fatigue load limit C<sub>u</sub> 3.8 kN
--- Unit information
Mass 7.1 kg
