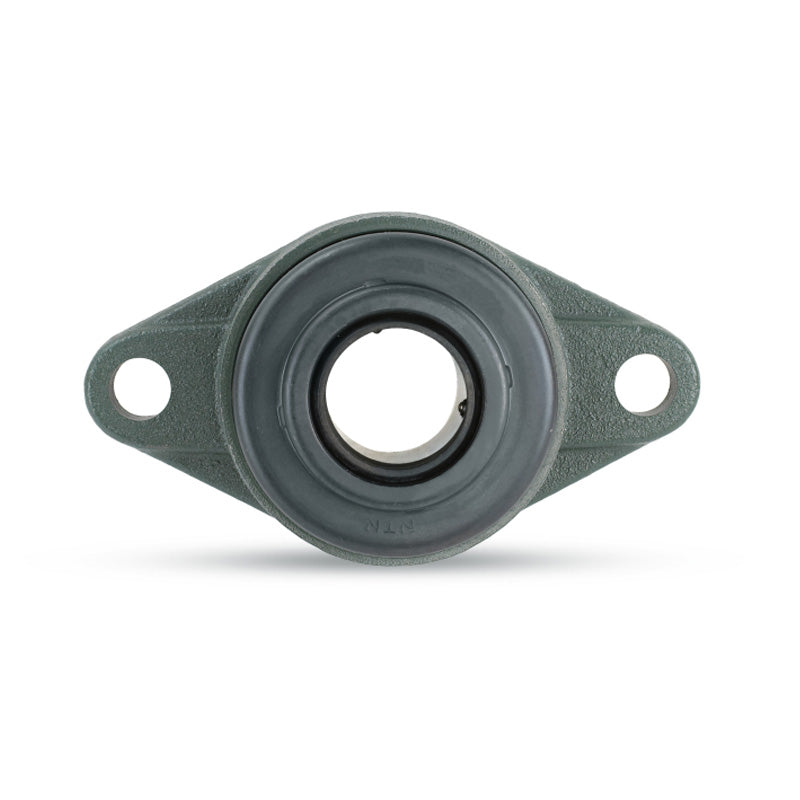

• NTN C-UCFL216D1 Metric Two Bolt Oval Cast Iron Flange Housing with 80mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
1 1

SKU: C-UCFL216D1-NTN

NTN C-UCFL216D1 Metric Two Bolt Oval Cast Iron Flange Housing with 80mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days

NTN C-UCFL216D1 Metric Two Bolt Oval Cast Iron Flange Housing with 80mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
$353.50 ex VAT
$353.50 ex VAT
Sale Sold out

In stock

Price Break
3+ $263.35
4+ $252.71
9+ $247.39
19+ $239.41
49+ $234.09
99+ $220.79
499+ $186.21
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
80mm
Style:
UCFL
Bolt Hole Centres:
233mm
Technical
--- Dimensions
Shaft diameter 80mm
H 290mm
J 233mm
A<sub>2</sub> 34mm
A<sub>1</sub> 22mm
A 58mm
N 25mm
L 180mm
B 82.6mm
S 33.3mm
A<sub>5</sub> 106mm
L<sub>1</sub> 183mm
L<sub>2</sub> 90mm
Fixing bolt M22
--- Load rating
Dynamic load C<sub>r</sub> 80.5 kN
Static load C<sub>0r</sub> 53 kN
Fatigue load limit C<sub>u</sub> 3.95 kN
--- Unit information
Mass 8.6 kg
